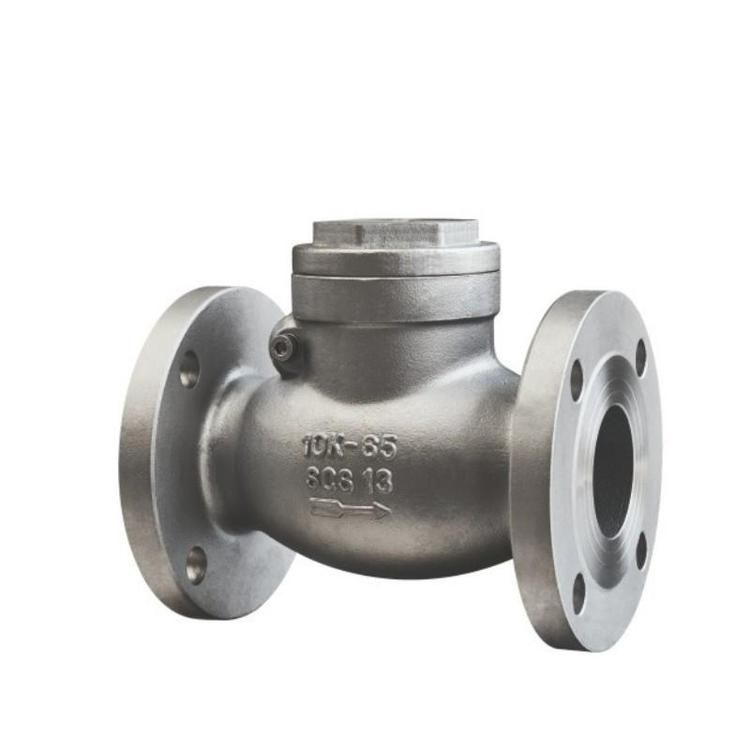

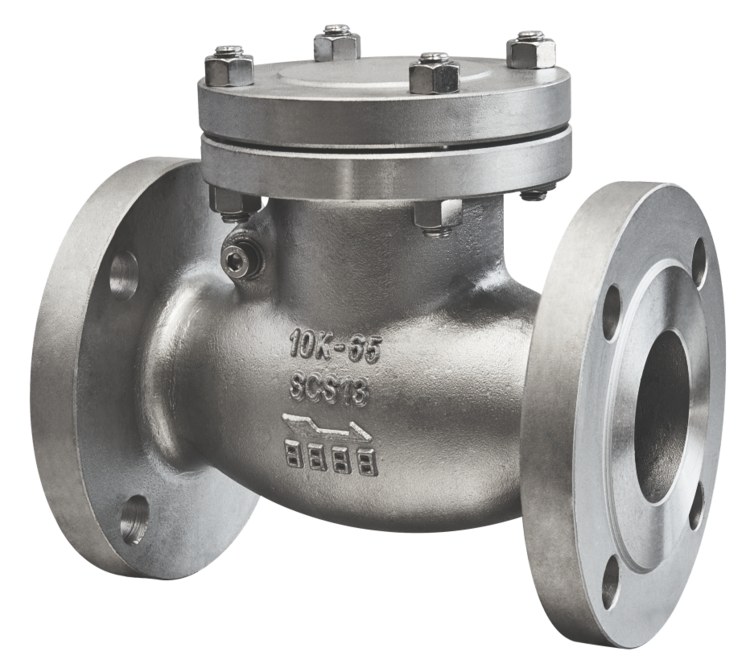

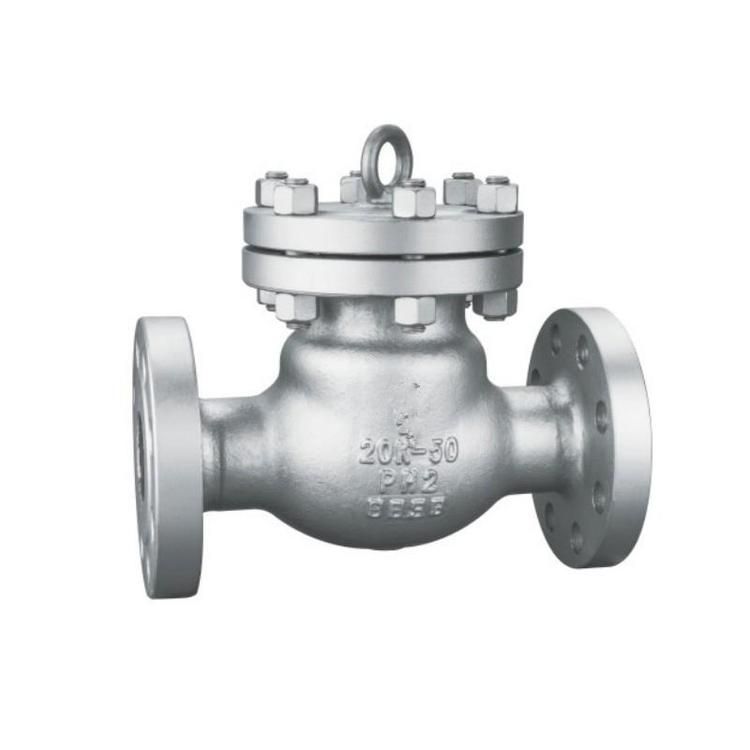

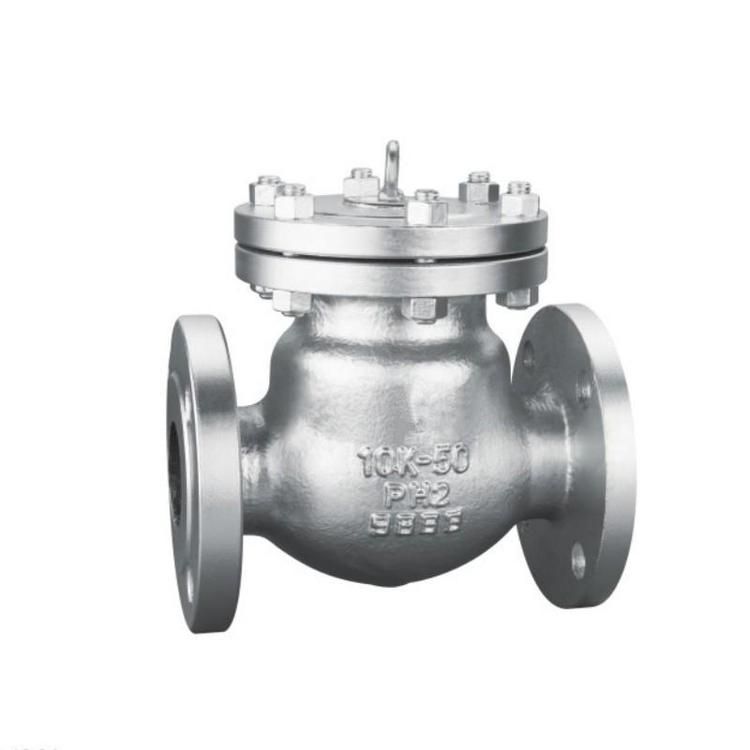

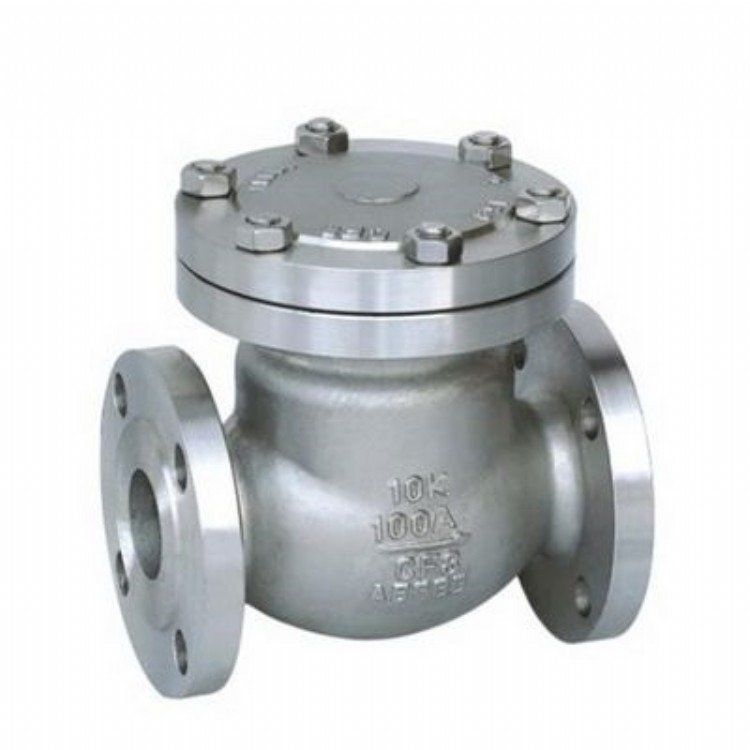

H44H day standard flange check valve

Product Description

H44H, H44W daily standard flange check valve is widely used in nominal pressure 10K-20K, working temperature -29 ~ 550ºC of petroleum, chemical, thermal power station and other working conditions of the pipeline, the applicable medium is: water, oil, steam and so on. Its main function is to prevent the backflow of the medium, to prevent the reverse of the pump and its driving motor, and the drainage of the medium in the container.

Structural features

1, the product structure is compact and reasonable, reliable sealing, excellent performance.
2, small volume, light weight.
3, wide range of application.
4, the valve flap close fast, sensitive action.
5, the closing impact is small, not easy to produce water hammer phenomenon.
6, the flow channel is unobstructed, the fluid resistance is small.

Citation Standard

Main overall dimensions
