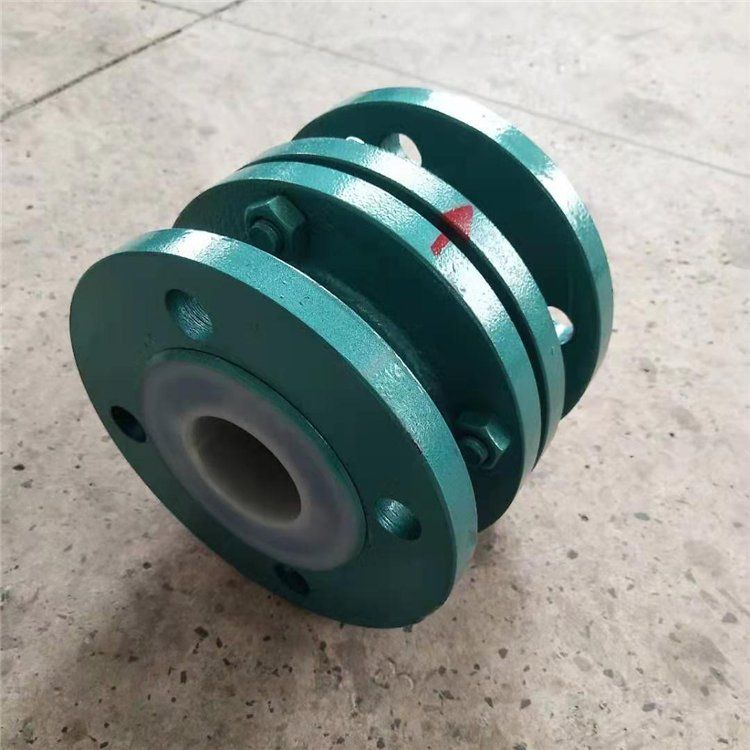

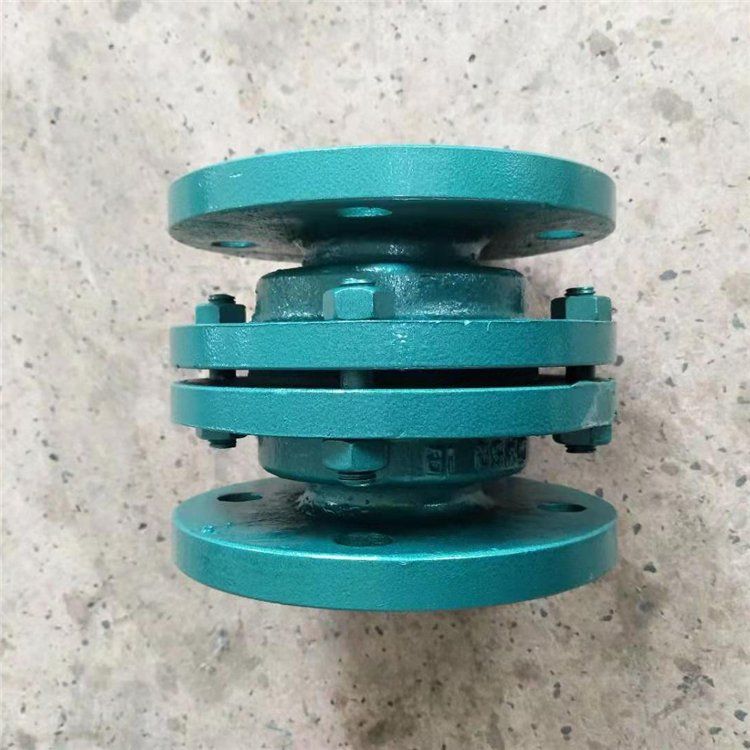

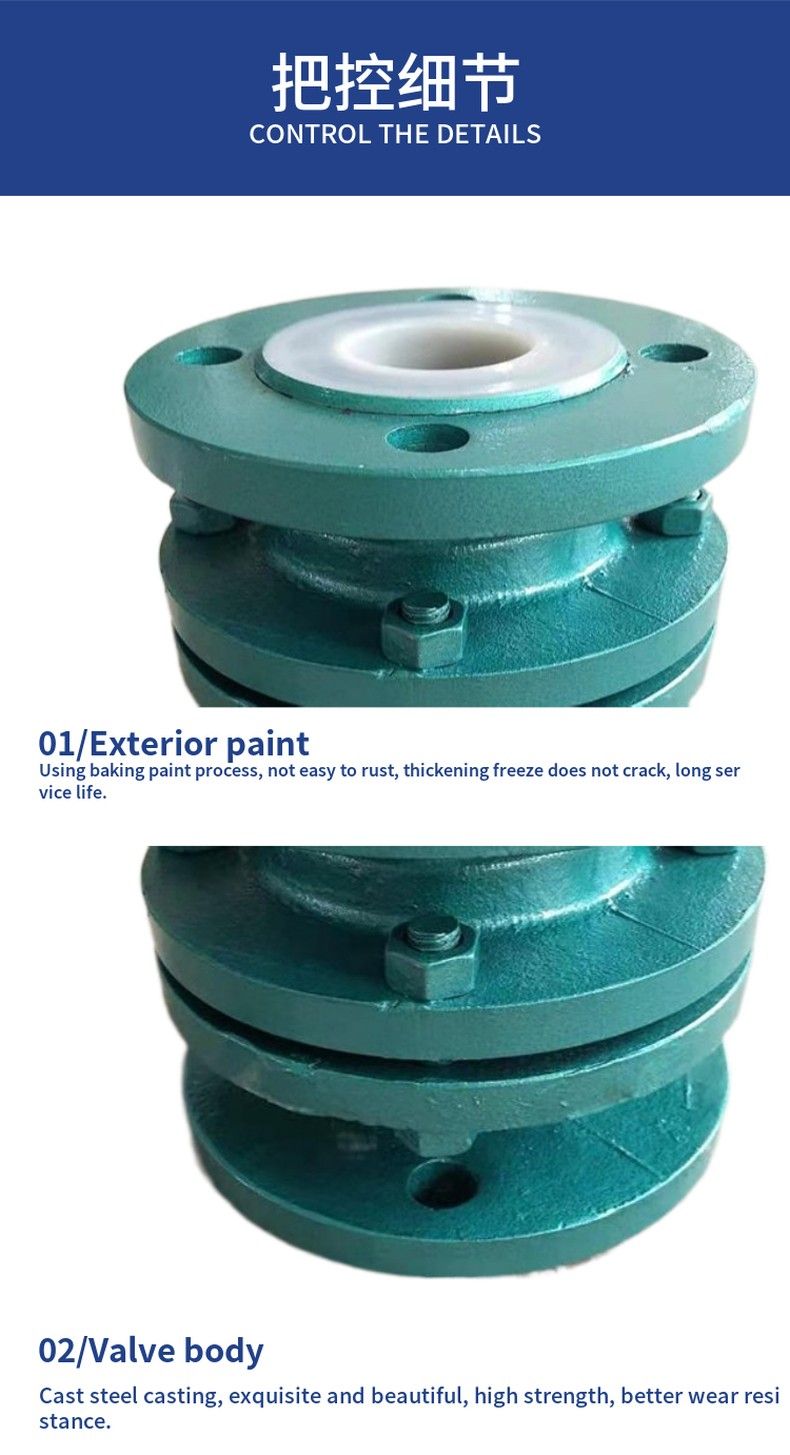

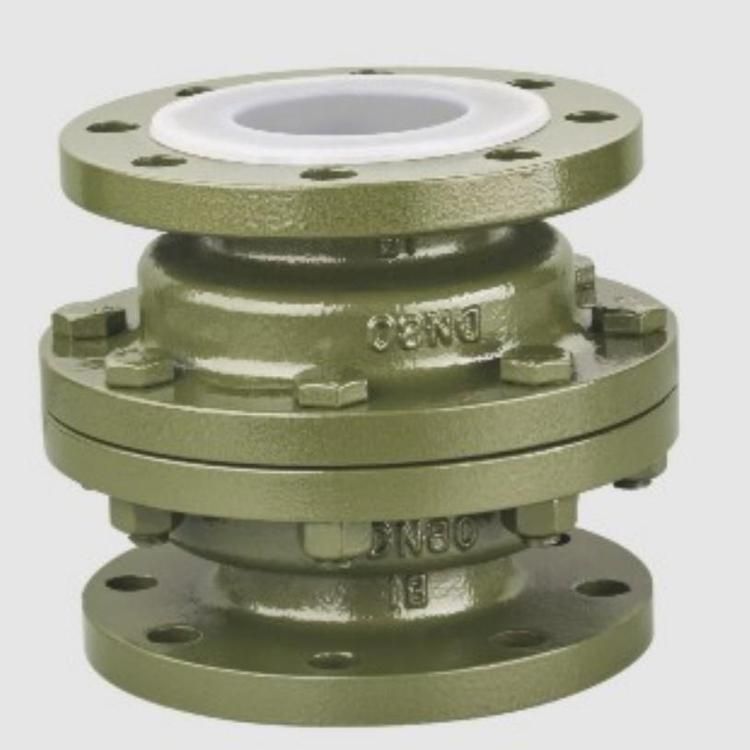

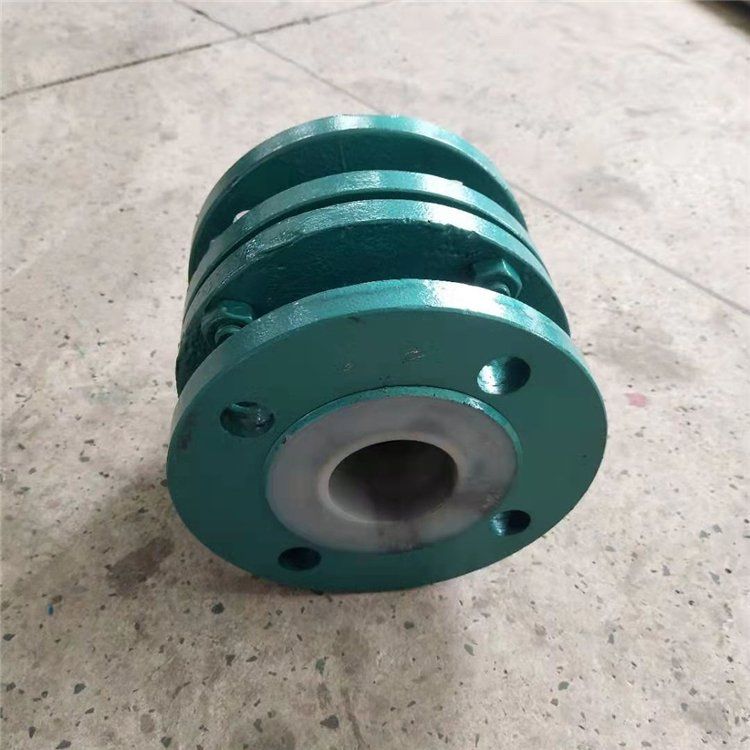

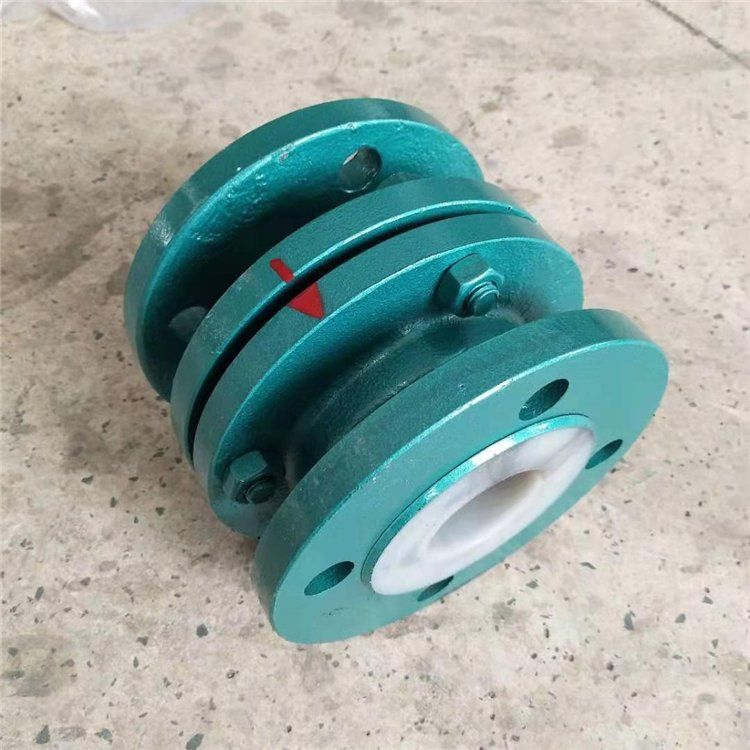

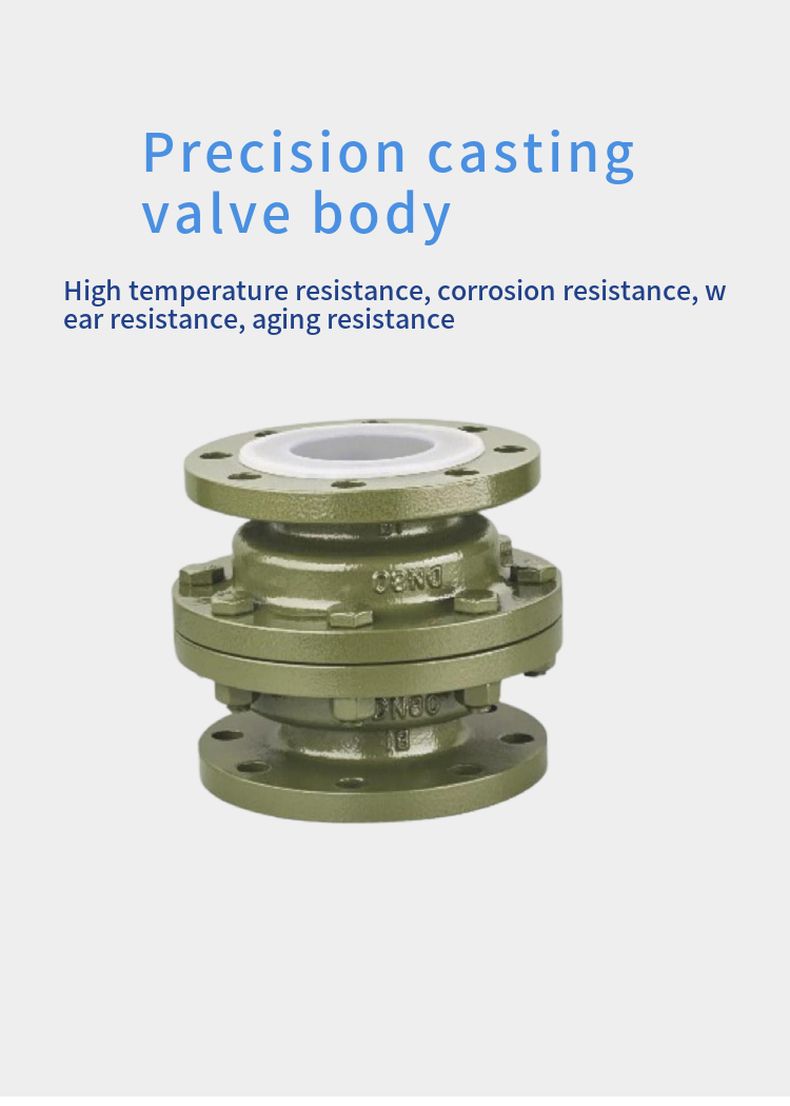

H42F46 Fluorine lined vertical check valve

Design specification

Flanged check valves
Design and manufacture in line with Chinese national standards
Basic structure form: elevating vertical. (New type)
The main parts except the valve disc is integral F3 or F46. Other materials are shown in Table A15
Nominal pressure: 0.6~1.0 (MPa)
Nominal diameter: DN25~150 (mm)
Nominal model: H40F3 H40F46

Material list of main parts

Main connection size and weight
