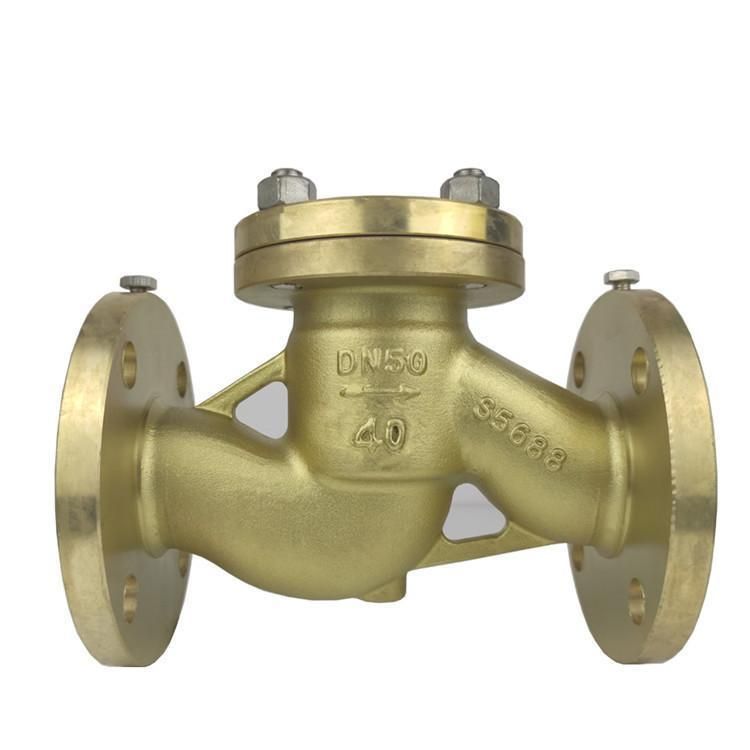

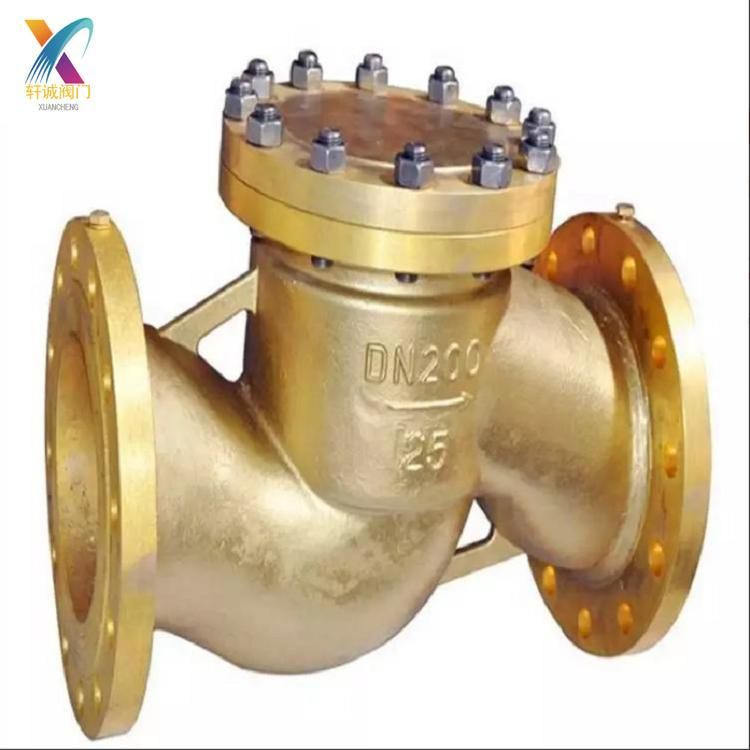

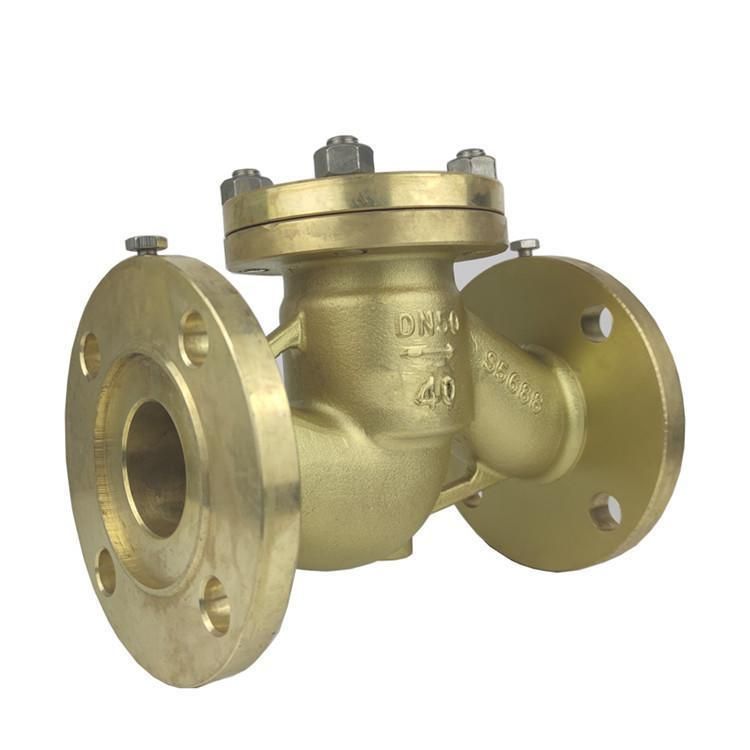

H41W brass lift check valveI. Main performance specifications

H41W brass lift check valveI. Main performance specifications

H41W brass lift check valveI. Main performance specifications

H41W brass lift check valveI. Main performance specifications

H41W brass lift check valveI. Main performance specifications

H41W brass lift check valveI. Main performance specifications

H41W brass lift check valveI. Main performance specifications

Share:

Models	Nominal pressure PN(MPa)	Test pressure PS(MPa)		Operating temperature ° C	Working pressure PN(MPa)	Applicable media
		Housing	Seal
H41W-16T H41W-25T	1.6	2.4	1.76	100 or less	1.6	Corrosive medium such as nitric acid \ corrosive medium such as acetic acid \ oxidizing corrosive medium
				150 or less
	2.5	3.8	2.8	100 or less	2.5	Corrosive medium such as nitric acid \ corrosive medium such as acetic acid \ oxidizing corrosive medium
				150 or less
	4.0	6.0	4.0	100 or less	4.0	Corrosive medium such as nitric acid \ corrosive medium such as acetic acid

I. Main performance specifications

Part name	Body	Bonnet		Flap	Guide kit	Shims
H41W-16T H41W-25T	Chromel nickel titanium stainless steel					Tef-lon
	Chromel molybdenum titanium stainless steel
	Pure titanium		Carbon steel	Titanium alloy	Pure titanium

Three, the main outline size and connection size (mm）

Model number	Nominal diameter DN()	millimeters
Model number	Nominal diameter DN()	L	D	D1	D2	Z - ф d	b	H
H41W-16T	15	130	95	65	45	4 - ф 14	14	77
	20	150	105	75	55	4 - ф 14	14	77
	25	160	115	85	65	4 - ф 14	16	80
	32	180	135	100	78	4 - ф 18	16	85
	40	200	145	110	85	4 - ф 18	16	95
	50	230	160	125	100	4 - ф 18	16	105
	65	290	180	145	120	4 - ф 18	18	120
	80	310	195	160	135	8 - ф 18	20	130
	100	350	215	180	155	8 - ф 18	20	140
	125	400	245	210	185	8 - ф 18	22	155
	150	480	280	240	210	8 - ф 23	24	180
	200	600	335	295	265	12 - ф 23	26	215
