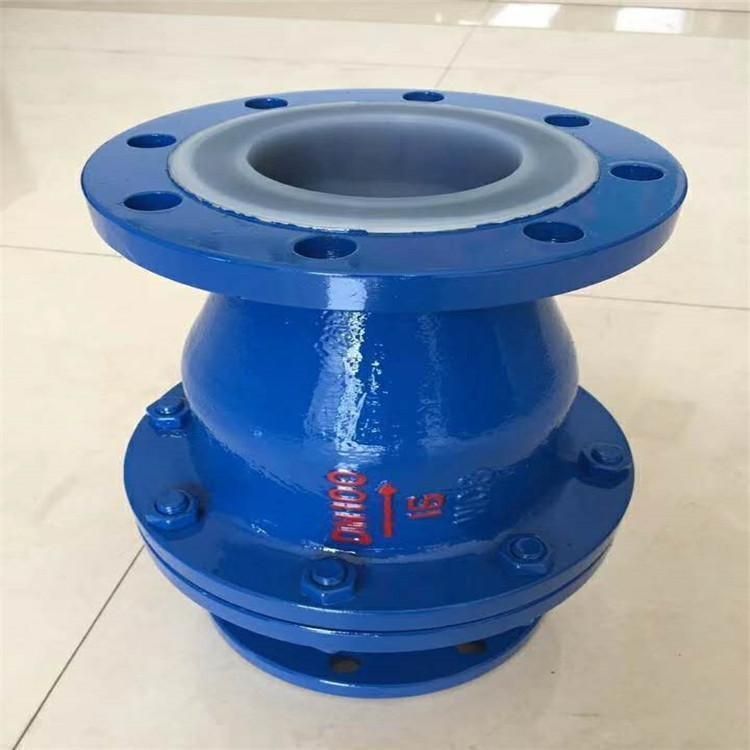

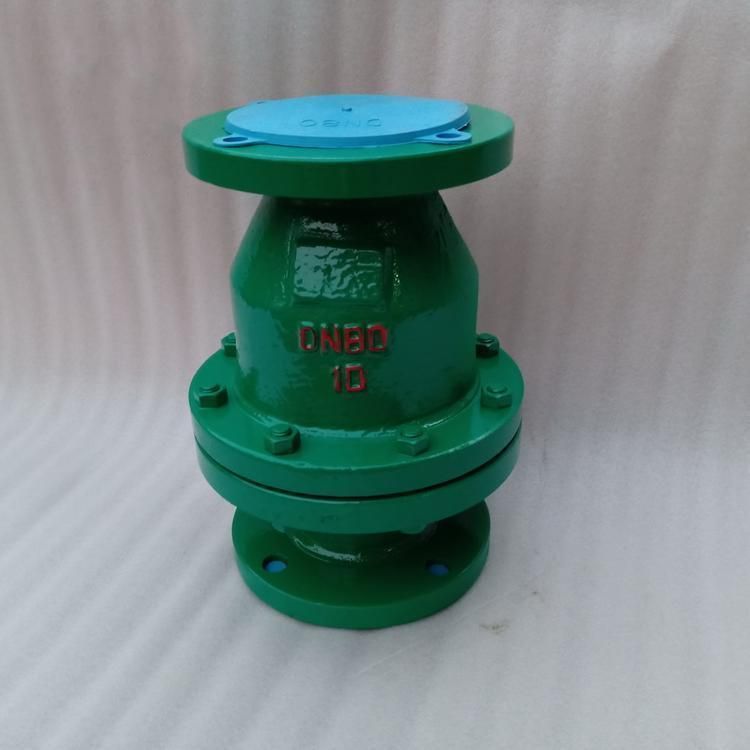

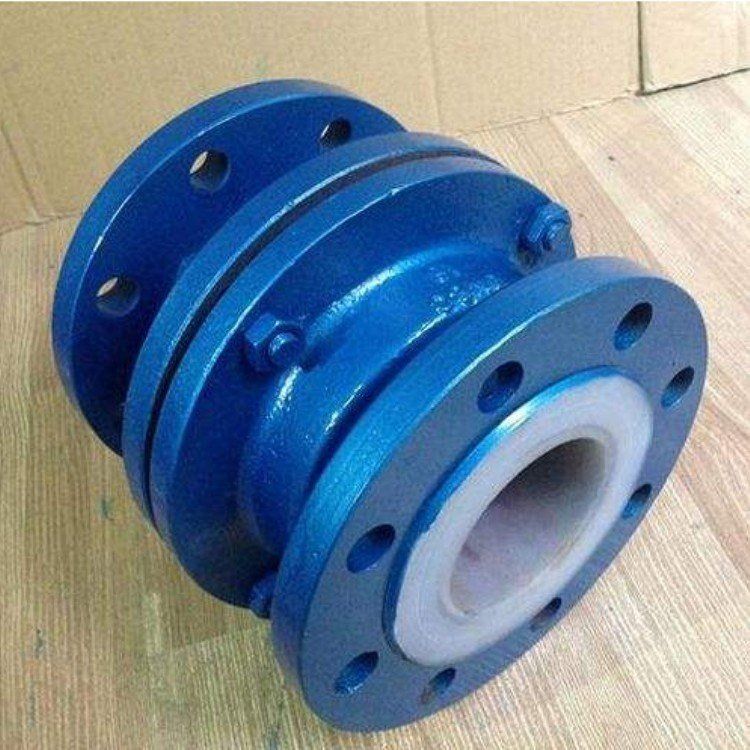

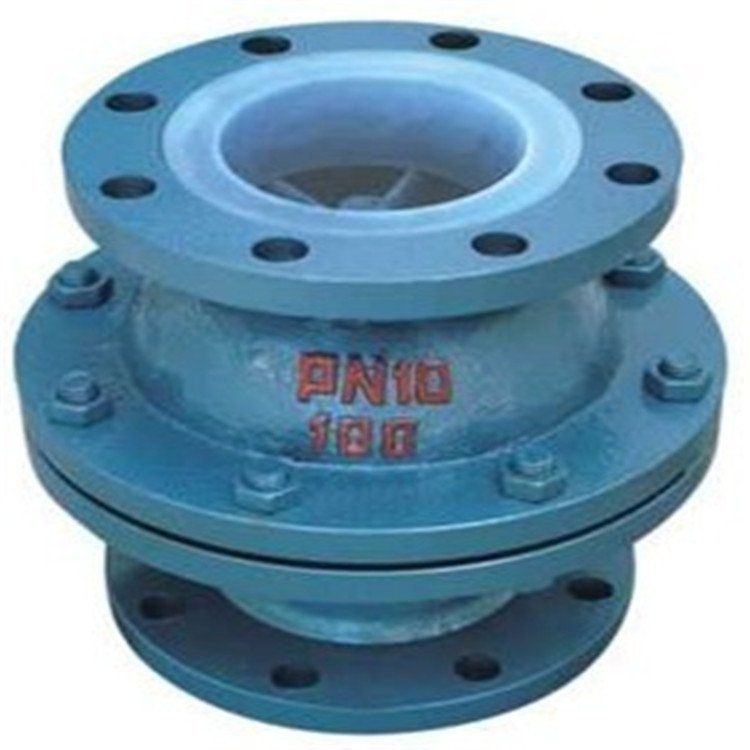

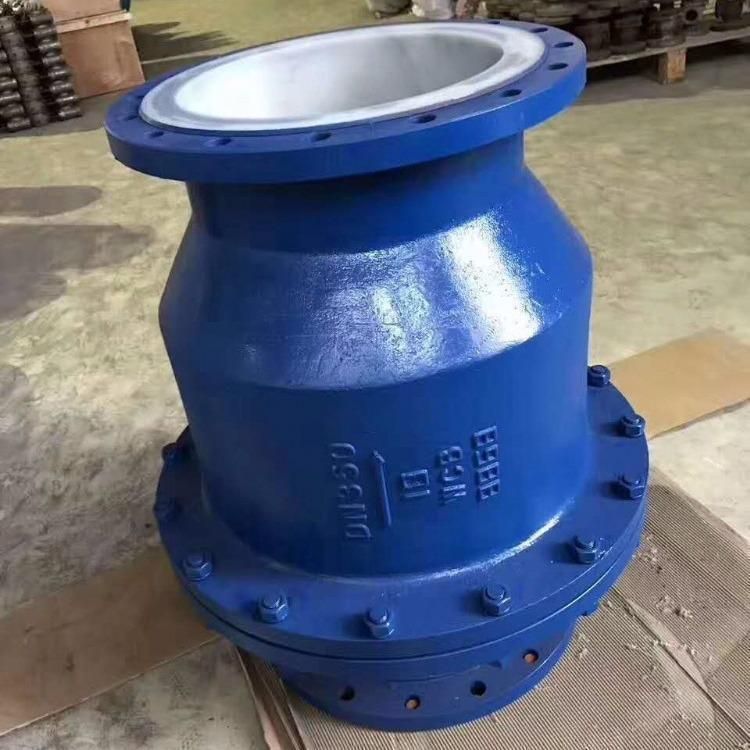

H40F float ball check valve

H40F float ball check valve

H40F float ball check valve

H40F float ball check valve

H40F float ball check valve

H40F float ball check valve

H40F float ball check valve

Share:

Float type check valve Technical specification:
1, design standard: in line with enterprise standards
2, structure length: GBl 2221
3, flange standard: JB/Y79-94 GB91131-26
4, nominal pressure: 10, 16, 2.5MPa
5, inspection test: JB/Y9092-99

float type check valve Structure size:

Nominal diameter DN(mm)	L1	L2	D	D1	[32	f	b	H	Z-cl	Weight (kg)
Nominal diameter DN(mm)	PN1, 0MPa
15	80	130	95	65	45	2	14	82	4-14	4
20	90	150	105	75	55	2	16	82	4-14	5
25	100	160	115	85	65	2	16	98	4-14	6
32	110	180	135	100	78	3	16	110	4 to 18	7.5
40	125	200	145	110	85	3	17	118	4 to 18	9.5
50	140	230	160	125	100	3	18	138	4 to 18	13
65	160	290	180	145	120	3	20	156	4 to 18	19.5
80	185	310	195	160	135	3	22	160	4 to 18	27
100	210	350	215	180	155	3	22	185	8 to 18	35
125	300	400	245	210	185	3	24	208	8 to 18	56
150	380	480	280	240	210	3	24	245	8-23	75
200	356	600	335	295	265	3	26	298	8-23	118
250	457	730	390	350	320	4	28	342	12-23	165
PNl.6MPa
15	80	130	95	65	45	2	15	82	4-14	4
20	90	150	105	75	55	2	16	82	4-14	5
25	100	160	115	85	65	2	16	98	4-14	6
32	110	180	135	100	78	3	16	110	4 to 18	7.5
40	125	200	145	110	85	3	17	118	4 to 18	9.5
50	140	230	160	125	100	3	18	138	4 to 18	13
65	160	290	180	145	120	3	20	156	4 to 18	19.5
80	185	310	195	160	135	3	22	160	8 to 18	27
100	210	350	215	180	155	3	24	185	8 to 18	35
125	300	400	245	210	185	3	26	208	8 to 18	56
150	380	480	280	240	210	3	28	245	8-23	75
200	356	600	335	295	265	3	30	298	12-23	118
250	457	730	405	355	320	4	30	342	12-25	165
PN2.5 MPa
15	80	130	95	65	45	2	16	82	4-14	6.5
20	90	150	105	75	55	2	16	82	4-14	7
25	100	160	115	85	65	2	16	98	4-14	8
32	110	180	135	100	78	3	18	110	4 to 18	11
40	125	200	145	125	85	3	18	118	4 to 18	15
50	140	230	160	110	100	3	20	138	4 to 18	17.5
65	160	290	180	145	120	3	22	156	8 to 18	26
80	185	310	195	160	135	3	22	160	8 to 18	36
100	210	350	230	190	160	3	24	185	8-23	44
125	300	400	270	220	188	3	28	208	8-25	60
150	380	480	300	250	218	3	30	245	8-25	81
200	356	600	360	310	278	3	34	298	12-25	137
250	457	730	425	370	332	4	36	342	12-30	173
