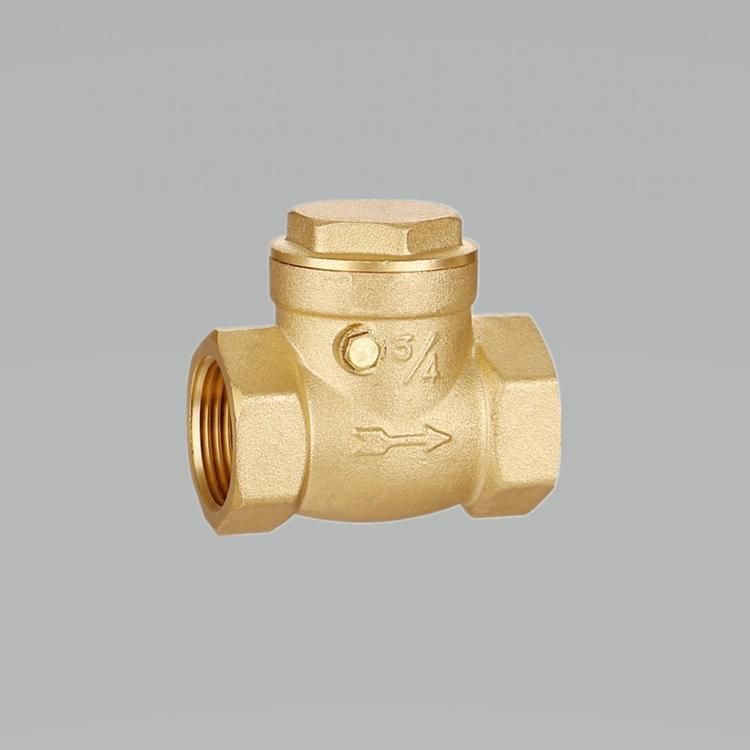

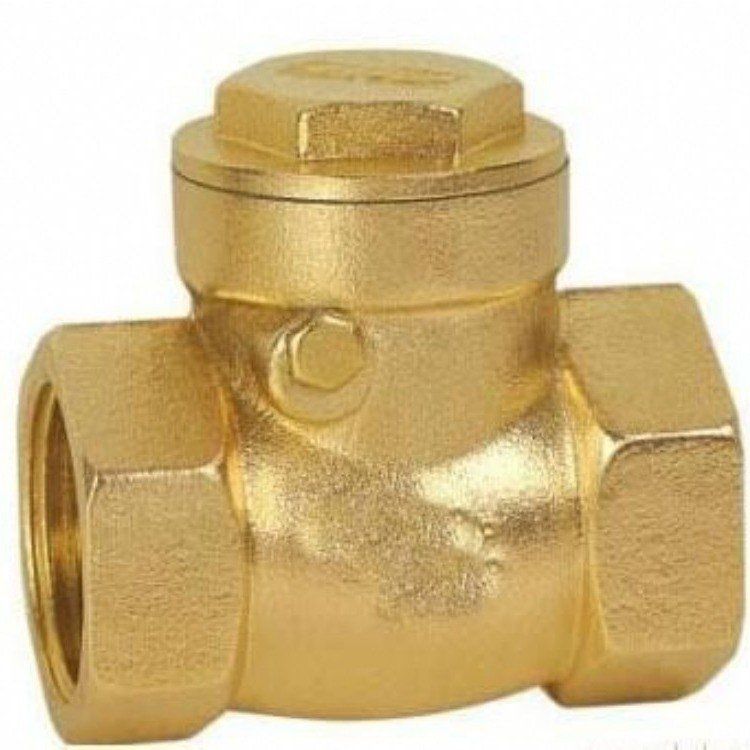

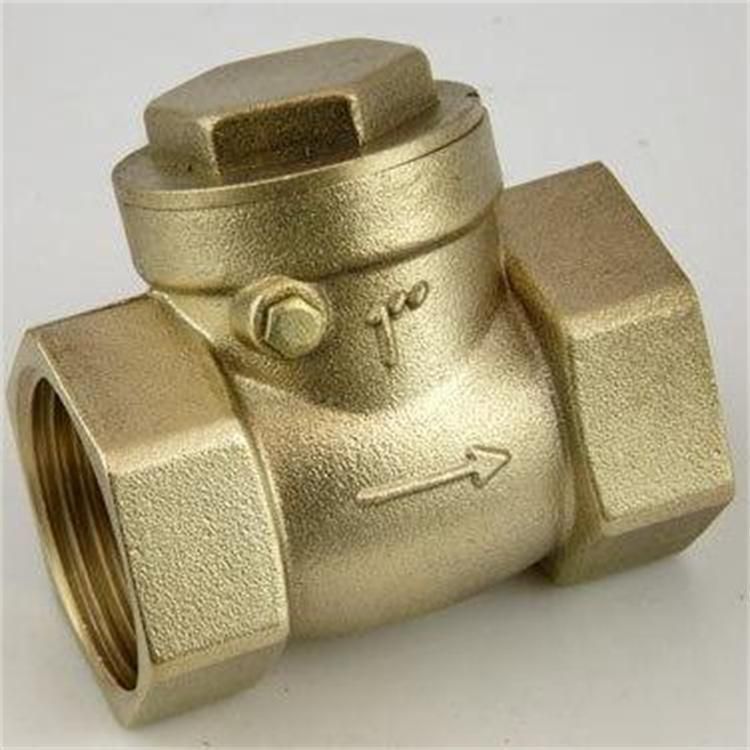

H14T brass internal thread check valve

Internal thread brass check valve product introduction:
The working medium of the internal thread brass check valve is less than 110ºC water, oil, gas, liquid, saturated steam and so on. Copper manufacturing materials Brass high precision, beautiful appearance, small shape, with a spring device, vertical and horizontal installation can be etc. Mainly adapted to the pipeline system to prevent the use of media backflow.
Internal thread brass check valve working principle:
Internal thread brass check valve can be divided into two kinds of lift check valve and swing check valve, lift check valve structure is generally similar to the globe valve, the valve flap along the channel to the line for lifting movement, reliable action, but the fluid resistance is larger. The disc of swing check valve rotates around the rotating shaft. The fluid resistance of the swing check valve is generally less than that of the lift check valve.
Internal thread brass check valve product features:
1. It has short structure, small size and light weight.
2, the valve flap is closed quickly, and the water hammer pressure is small.
3, the flow channel is unobstructed, the fluid resistance is small; Sensitive action, good sealing performance.
4, easy to install, can be installed in the horizontal, vertical two directions of the pipe.
The main shape and connection size of internal thread brass check valve:
