Home
>>
Products
>>
Check valve

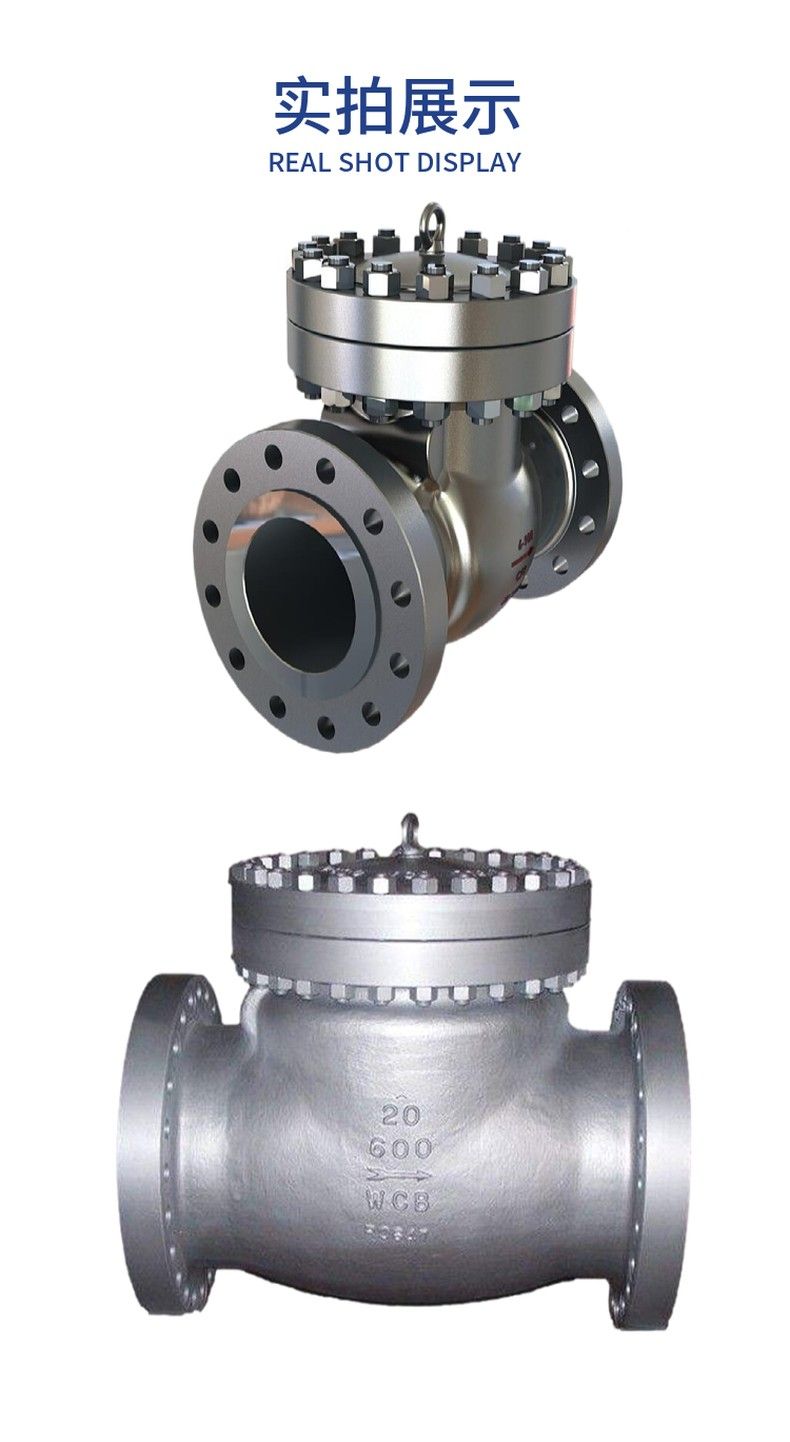

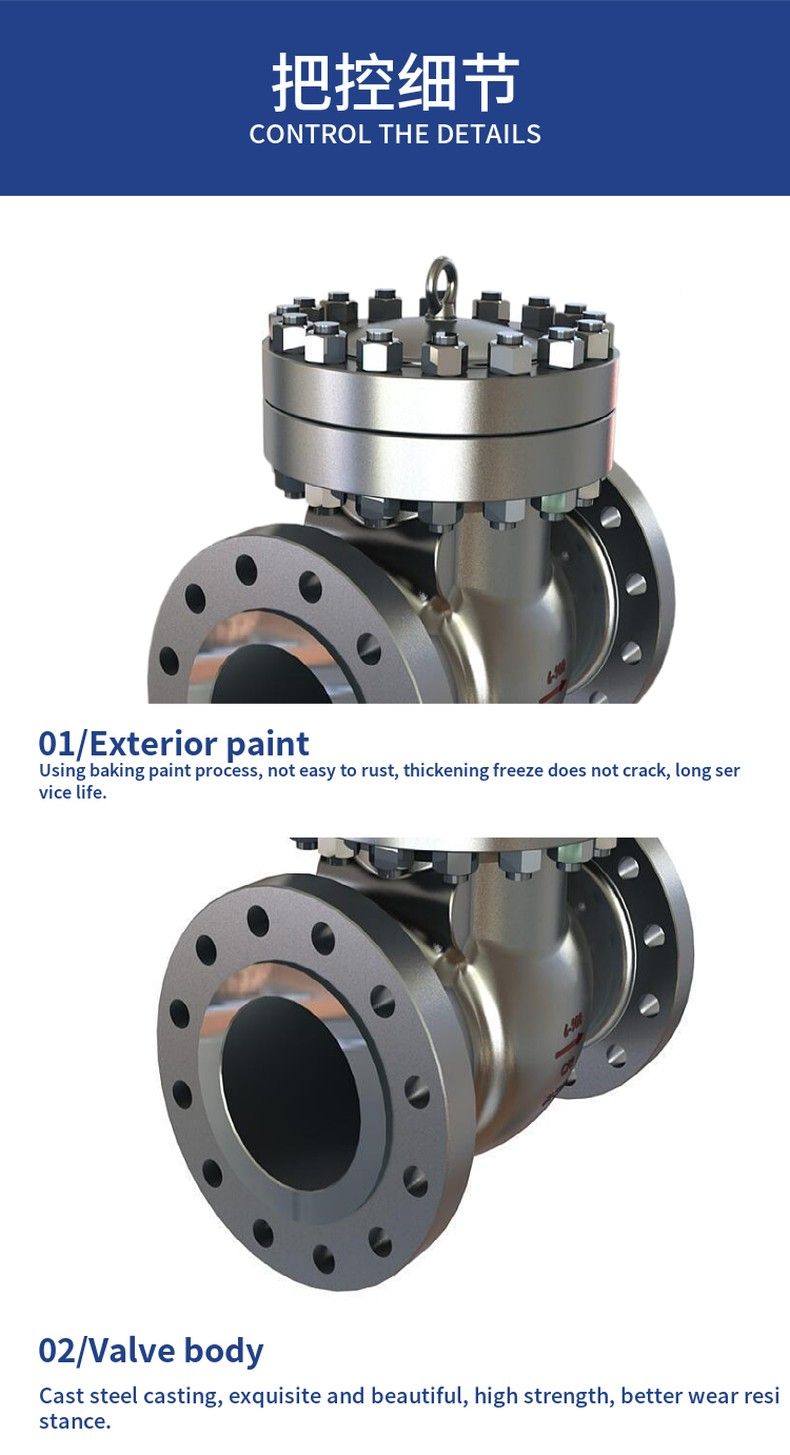

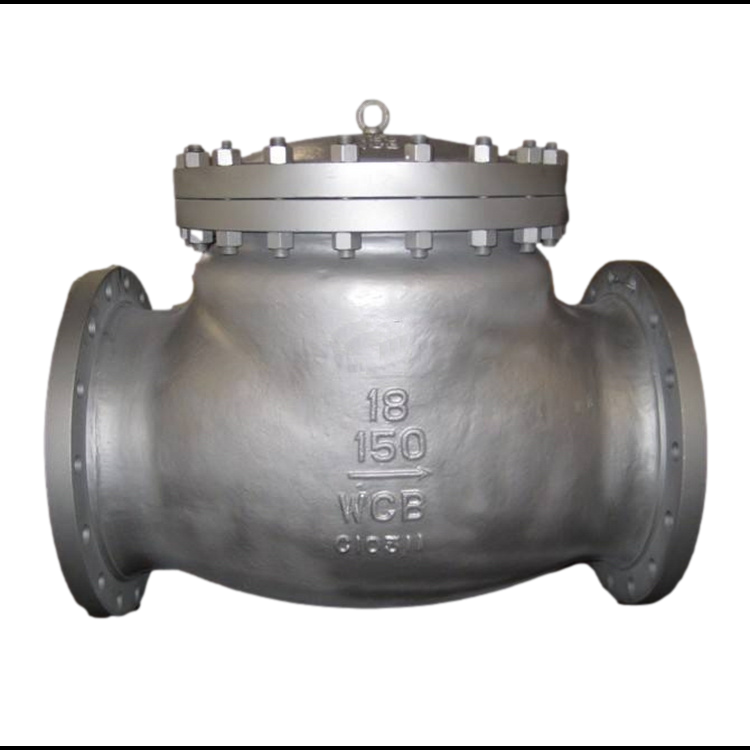

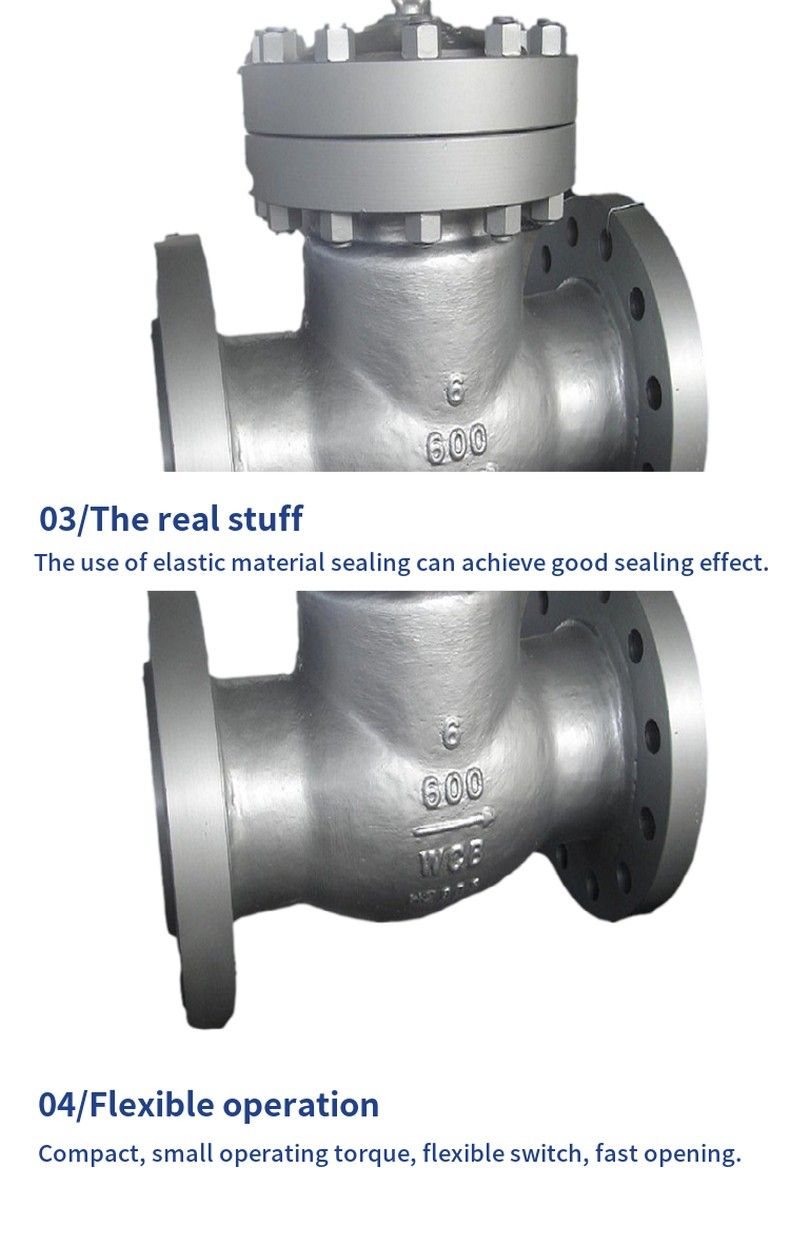

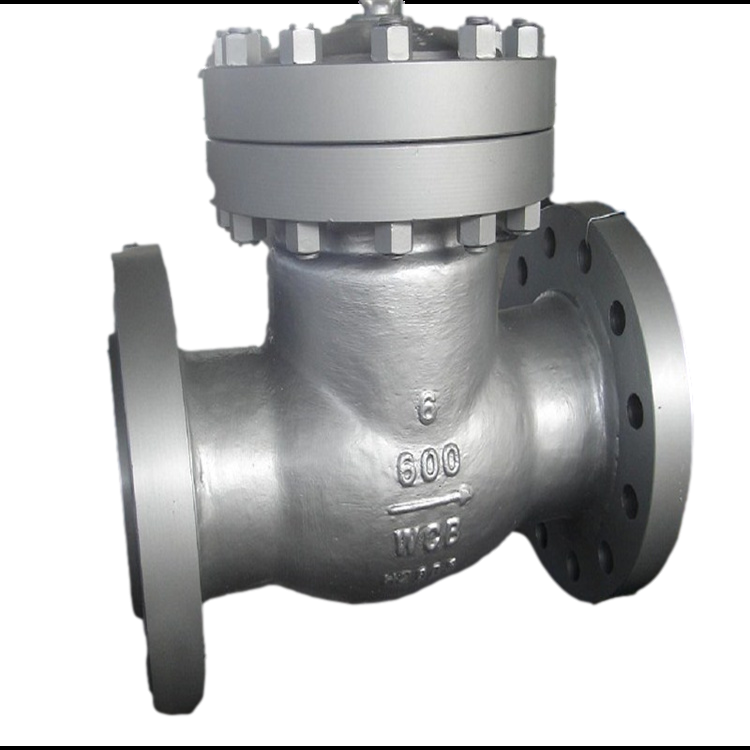

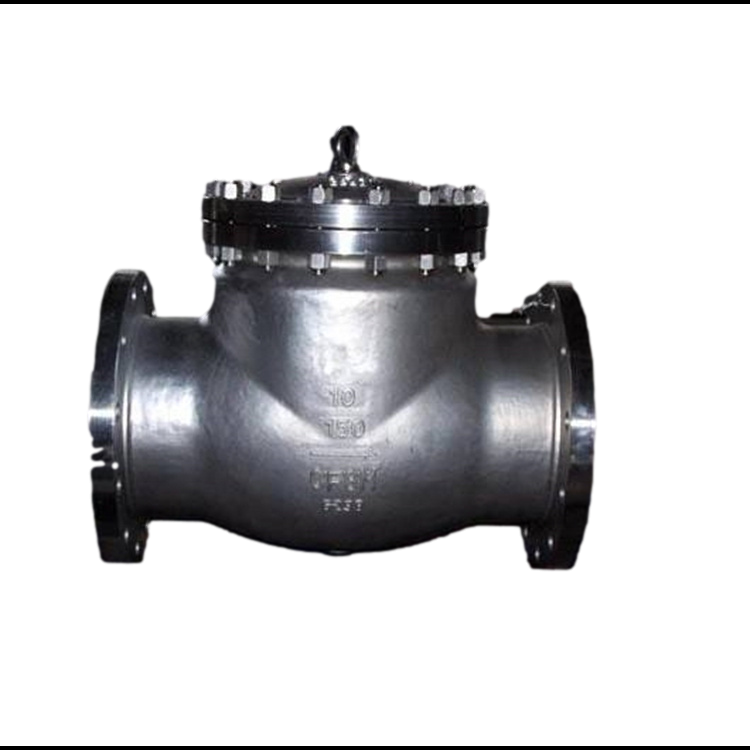

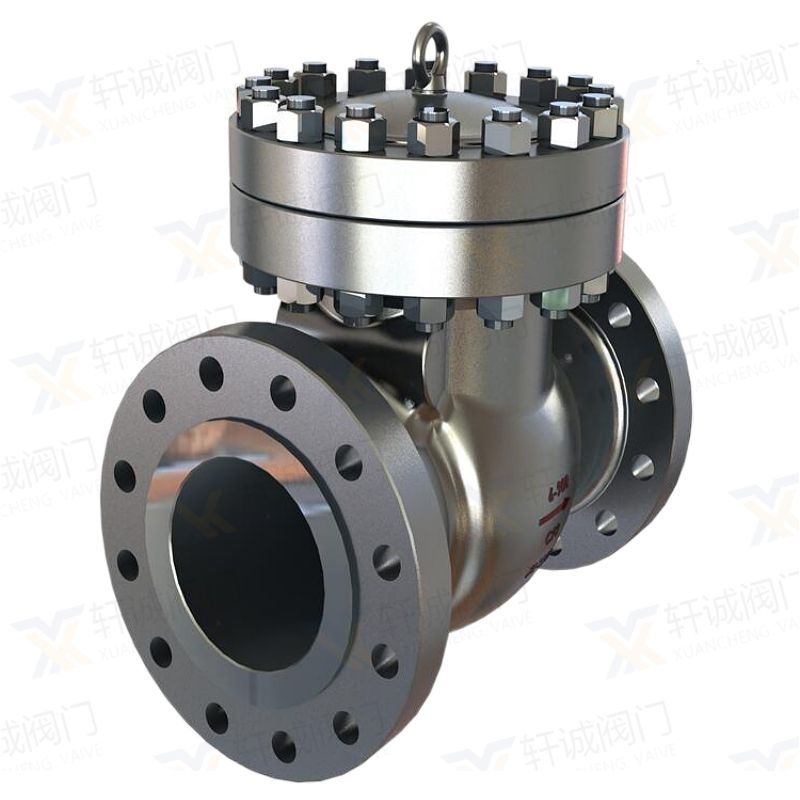

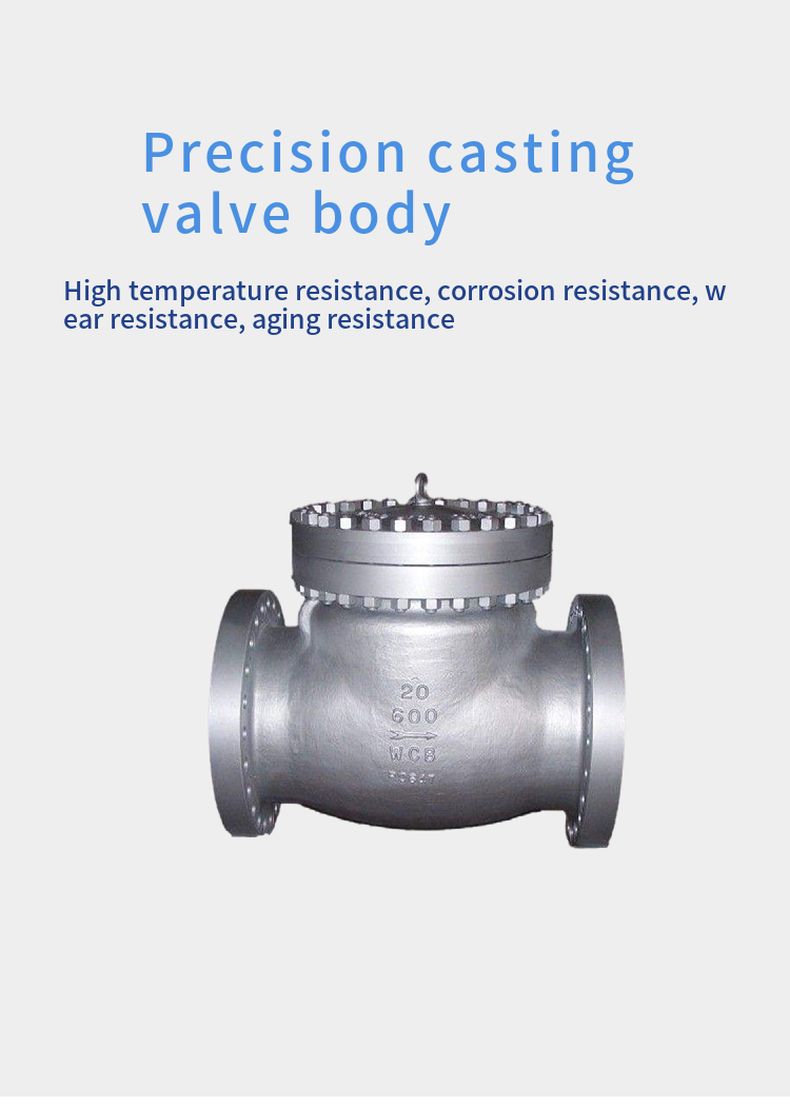

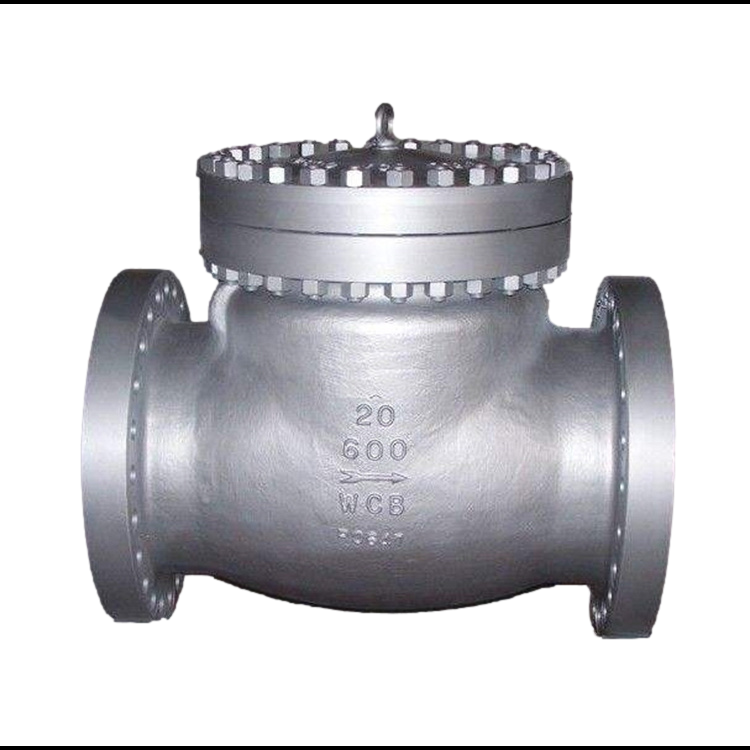

DH44Y low temperature check valve
Share:
Executive standard
Project
Design and Manufacturing
Structural length
Flange standard
Inspection and testing
Standards
API 600
ANSI B16.10
ANSI B16.5
API 598
Materials for Main Parts
Part name
Body, bonnet
, disc, rocker
Pin, nut
Double-ended nuts
Sealing surface
Stuffing
Materials
A352-LCB, A352-LC3, A351-CF8
A182-F304
Cr-Mo steel
Cobalt base complex
Tef-lon
Main performance specifications
Model number
Nominal pressure PN (Lb)
Normal temperature test pressure
Low temperature seal test pressure (MPa)
Working temperature and applicable medium
Housing
Seal
DH44Y-150 (Lb)
150
3.0
0.6
0.6
-46 ° C, ammonia, liquid nitrogen, propane
-101 ° C ethylene, carbon dioxide
-196ºC Methane, liquefied natural gas
DH44Y-300 (Lb)
300
7.5
0.6
0.6
DH44Y-600 (Lb)
600
15.0
0.6
0.6
Main outline dimensions and connection dimensions
Nominal diameter NPS
in
1 1/2
2
2 1/2
3
4
6
8
10
12
14
mm
40
50
65
80
100
150
200
250
300
350
DH44Y-150Lb
L
165
203
216
241
292
356
495
622
698
787
H
154
175
177
191
222
325
383
448
540
560
Kg
14
18
22
30
46
82
116
158
238
DH44Y-300Lb
L
241
267
292
318
356
445
533
622
711
H
172
198
204
222
277
346
412
465
562
Kg
18
26
34
45
64
105
167
272
375
Inquire Now
Next Product
Product Description
