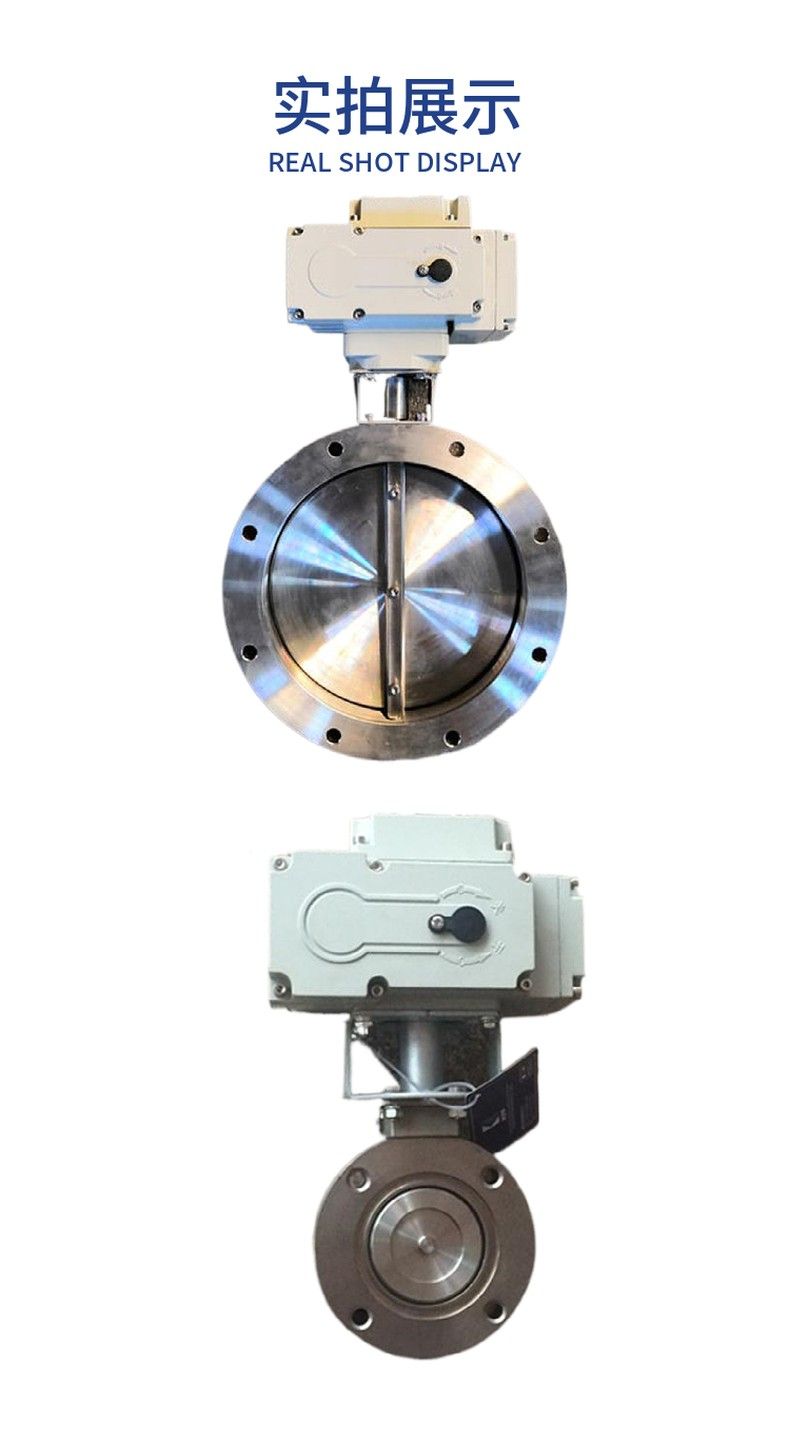

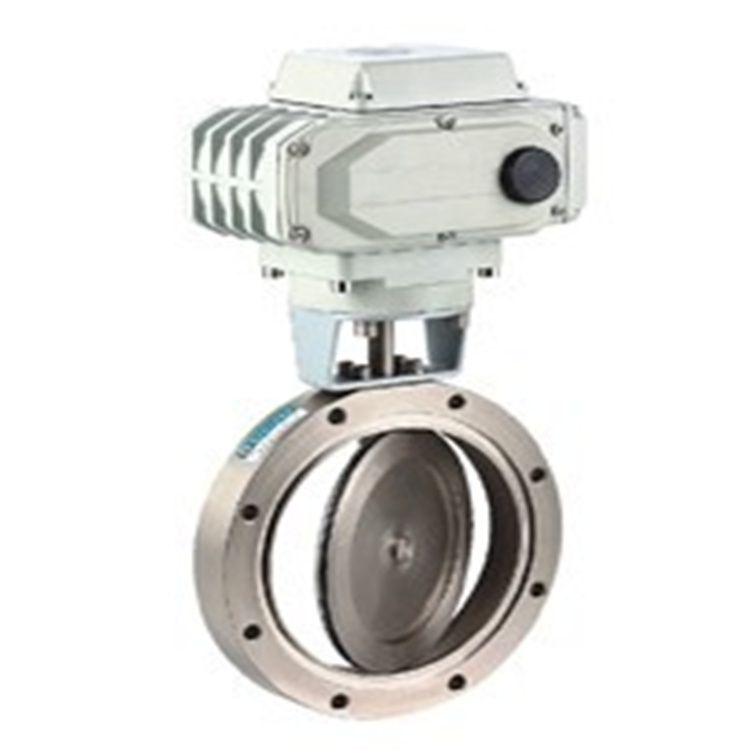

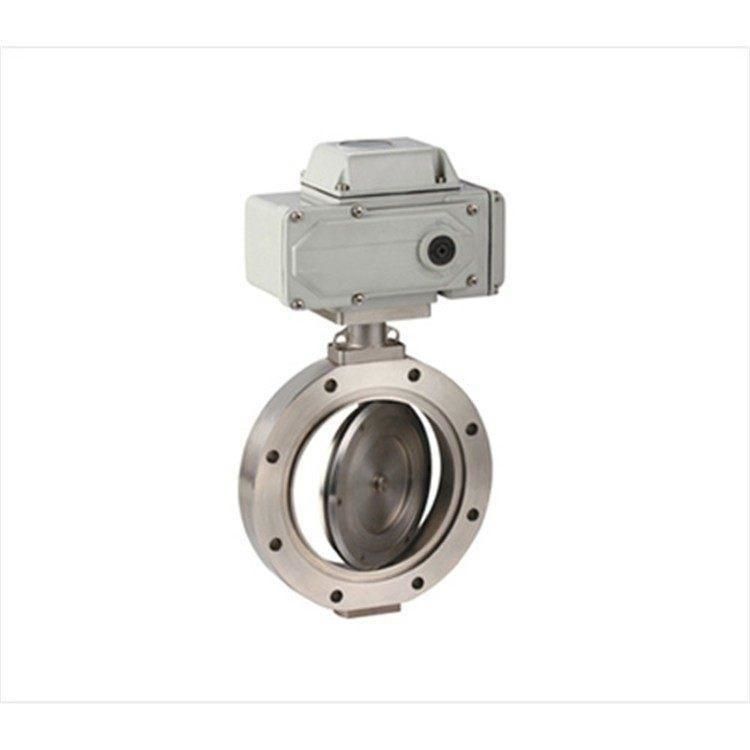

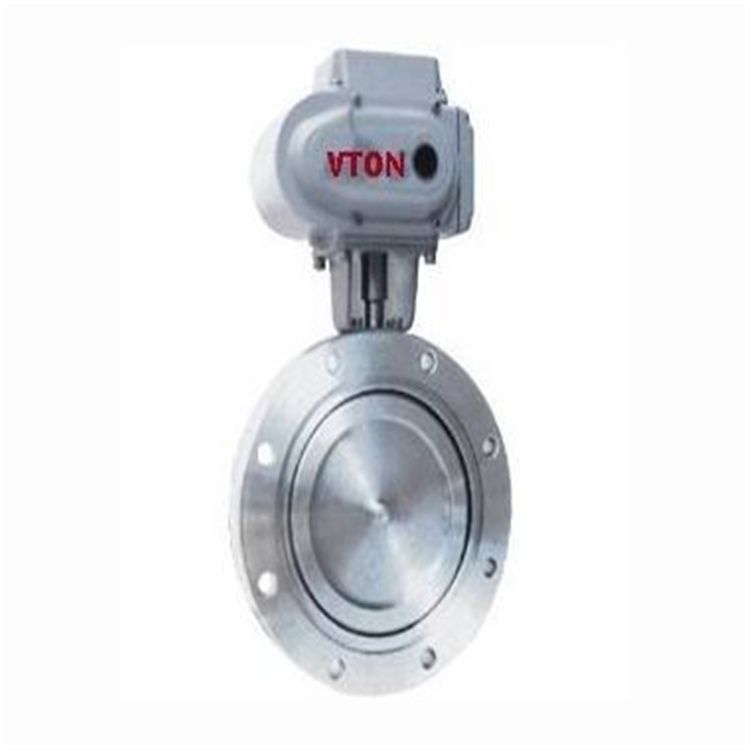

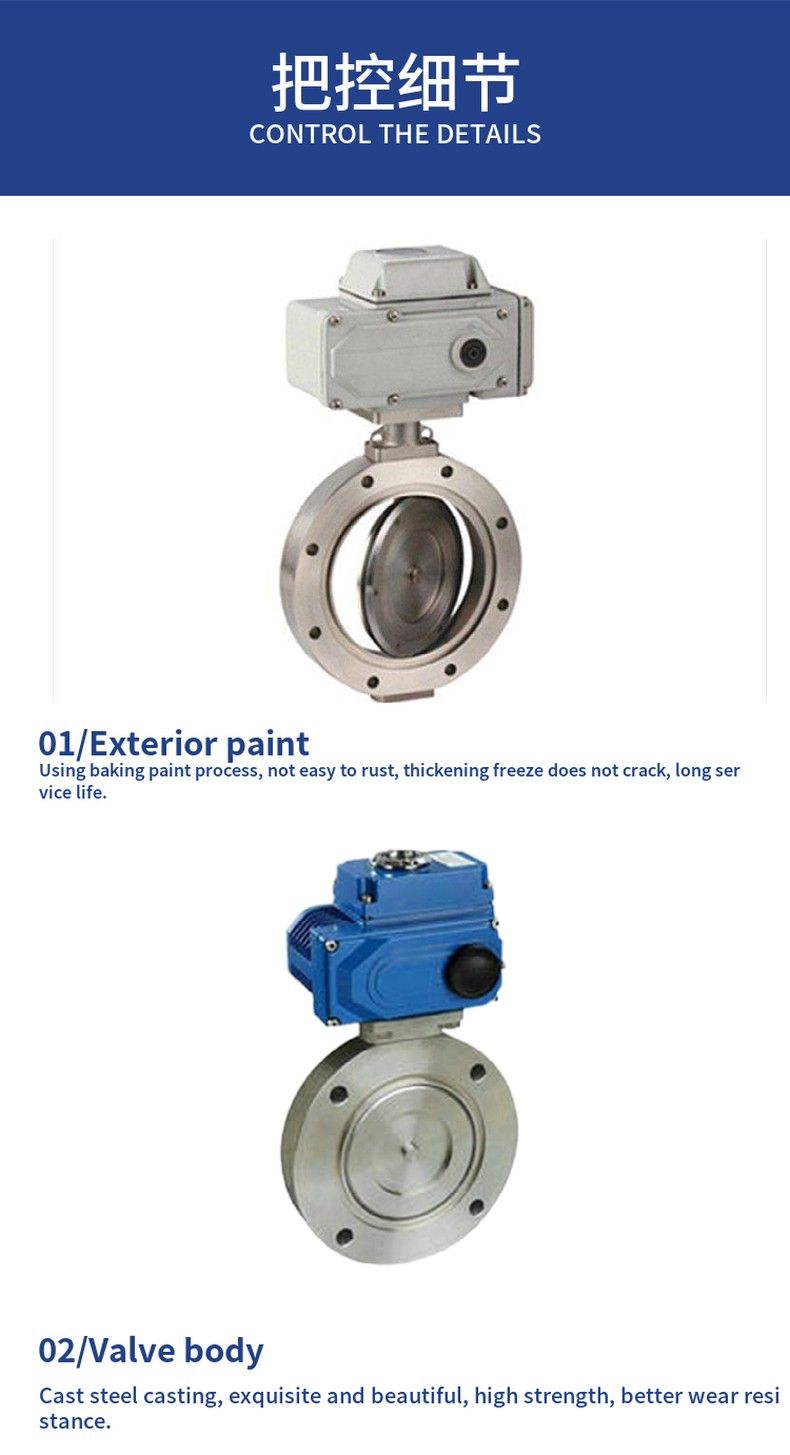

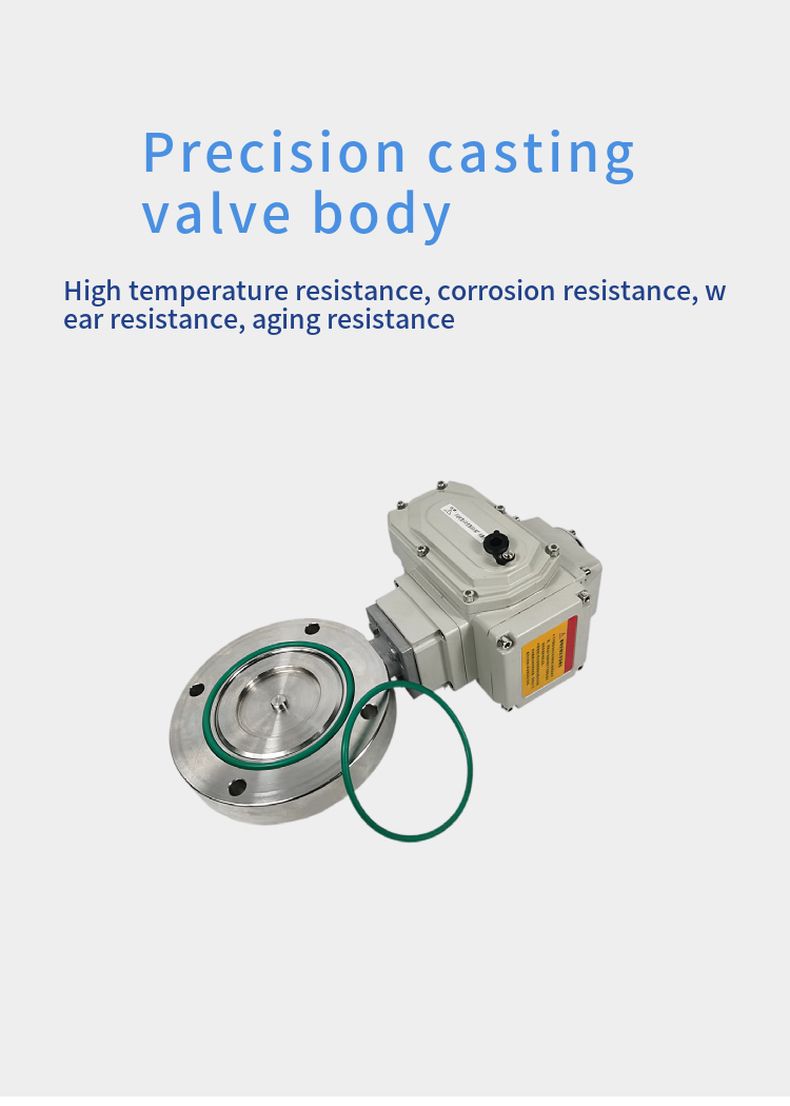

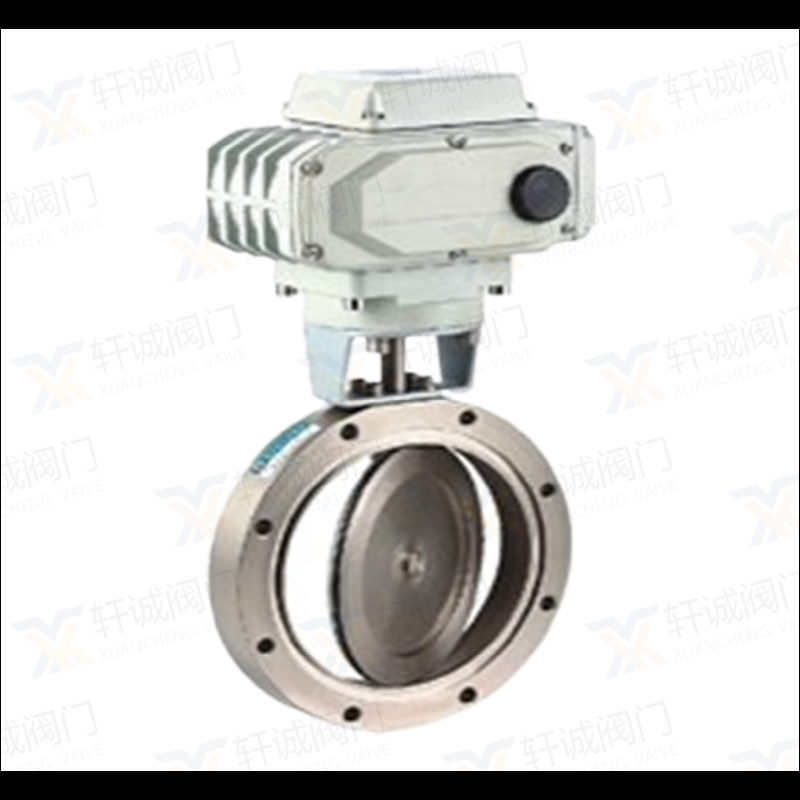

GID Electric high vacuum butterfly valve

Product Name:	Electric high vacuum butterfly valve	Product Model:	GID
Nominal diameter:	DN40 to DN1200	Seat seal:	Fluoro rubber, butadiene rubber, metal seat
Nominal pressure:	2x105 ~ 1.3 x 10-5Pa	Connection method:	double-clip-on
Applicable temperature:	-30ºC to +150ºC	Drive mode:	Manual, electric, pneumatic
Body material:	Cast steel, stainless steel, 316, 316L	Manufacturing standard:	GB, German DIN, American API, ANSI
Applicable media:	Air	Manufacturer:	Xuan Cheng Valve Co., LTD

Product Description

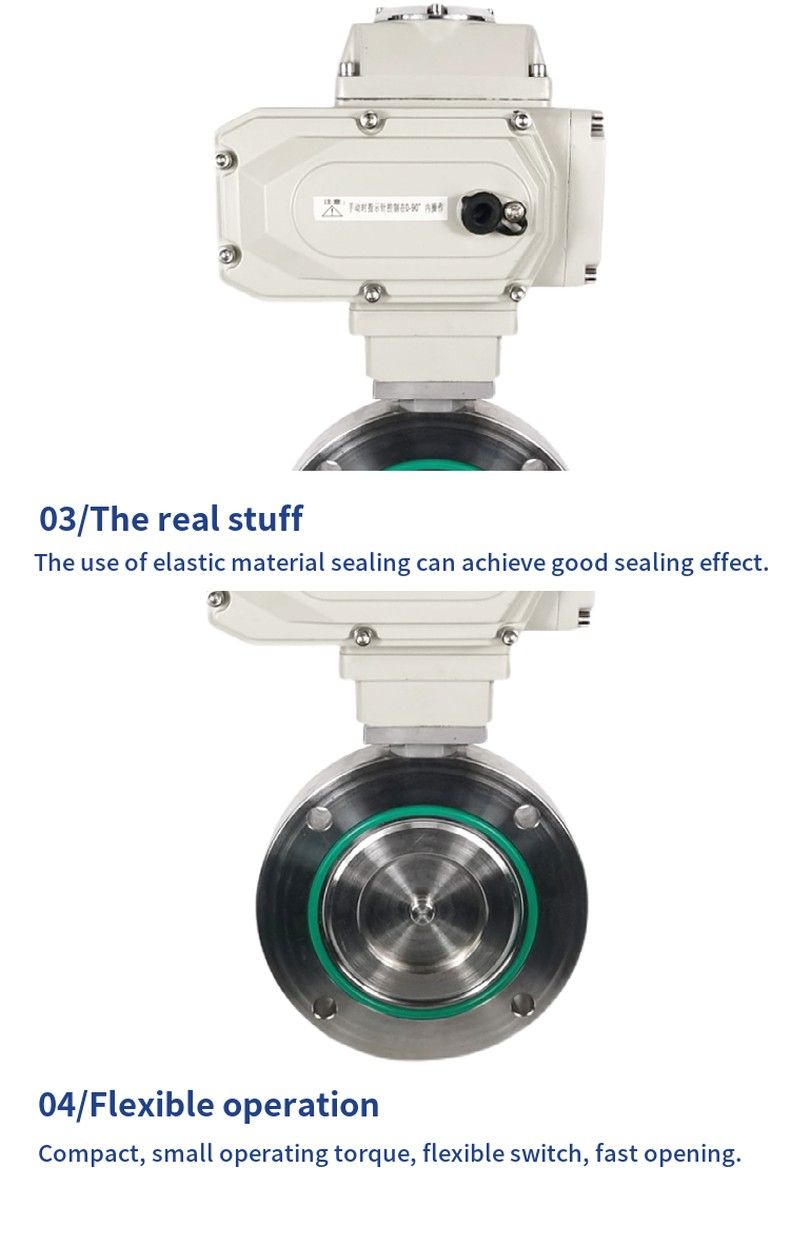

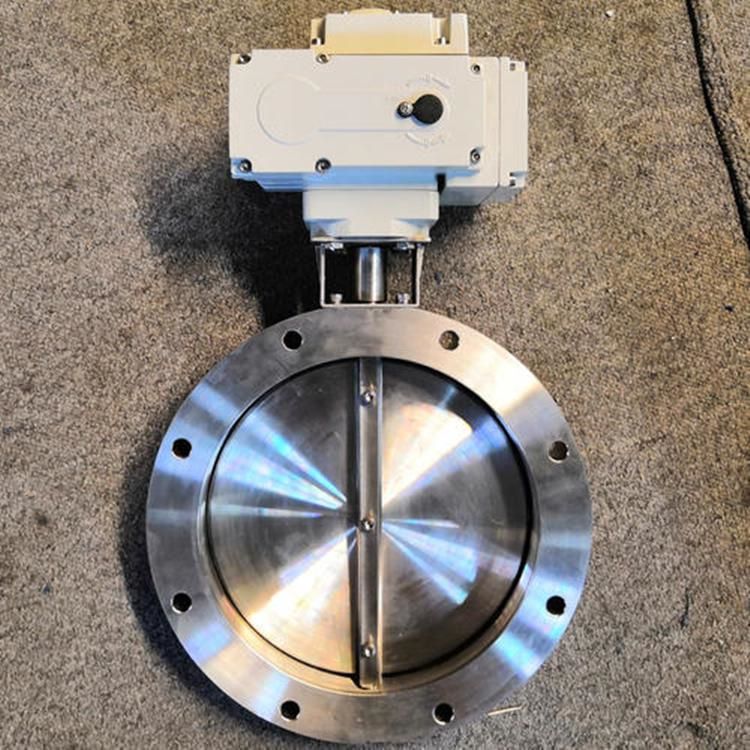

GID electric high vacuum butterfly valve adopts back transition electric and electronically adjusted valve drive device, which can be controlled by switching the external power supply (controlled by manual shift switch or computer) or external input signal to realize the valve opening, closing or middle position control, so as to achieve the purpose of connecting or cutting off the air flow in the vacuum pipe. It is used to put on or cut off the air flow in the vacuum pipe. The valve plate of the valve body adopts a clamping structure to clamp the sealing ring of the valve plate to play a better sealing role. In addition to being used in a vacuum state, it can also be used in a low pressure state.

Technical performance

Scope of application (Pa)	10-5 to 1.3x10-5Pa
Valve leakage rate (Pa.L/S)	1.3 x10-6 or less
Opening and closing time (S)	DN≤63 20S; 80≤DN≤200 30S; DN≥250 48S
Medium temperature (° C)	-25 ~ +80(the sealing material is nitrile butadiene rubber) -30 ~ +150(the sealing material is fluorine rubber)
Flanges standard	JB919
Mounting position	Any
Control circuit	Standard factory: AC220V/50Hz switch type Special designation: AC380V; DC24V switch type 4 ~ 20mA DC regulation type
Signal Feedback	Standard factory: with passive contact type Special designation: 4 ~ 20mA DC regulation type

Main parts materials

Body, bonnet, stem: carbon steel or stainless steel
seals: nitrile rubber, fluorine rubber

Main outline dimensions

Model number	DN	D	Do	D1	B	H	B1	L	N - phi c
GID-40	40	85	70	44	22	162	90	104	4-7
GID-50	50	110	90	55	22	175	90	104	4-7
GID-65	65	125	105	70	26	198	102	140	4-9
GID-80	80	145	125	85	30	208	102	140	4-9
GID-100	100	170	145	105	30	220	102	140	4 - phi 12
GID-150	150	220	195	156	35	272	115	164	8 - phi 12
GID-200	200	275	250	208	40	330	205	190	8 - phi 12
GID-250	250	330	300	258	45	335	205	190	8 - phi 14
GID-300	300	380	350	308	55	426	152	247	8 - phi 14
GID-400	400	500	465	410	60	520	180	308	8 - phi 18
GID-500	500	600	565	510	80	643	220	378	12-18
GID-600	600	710	670	610	100	760	270	524	12-21
GID-800	800	920	815	815	130	962	320	648	20-21
GID-1200	1200	1440	1280	1280	150	1360	385	1480	36 - phi is 19

GID electric high vacuum butterfly valve specifications, structure and size provided by Xuan Cheng Valve Co., LTD., how to choose the applicable GID electric high vacuum butterfly valve products, so that it is safe, reliable and economically applicable in the process control, you can call our sales department and technical department, we will answer you in the shortest time!
