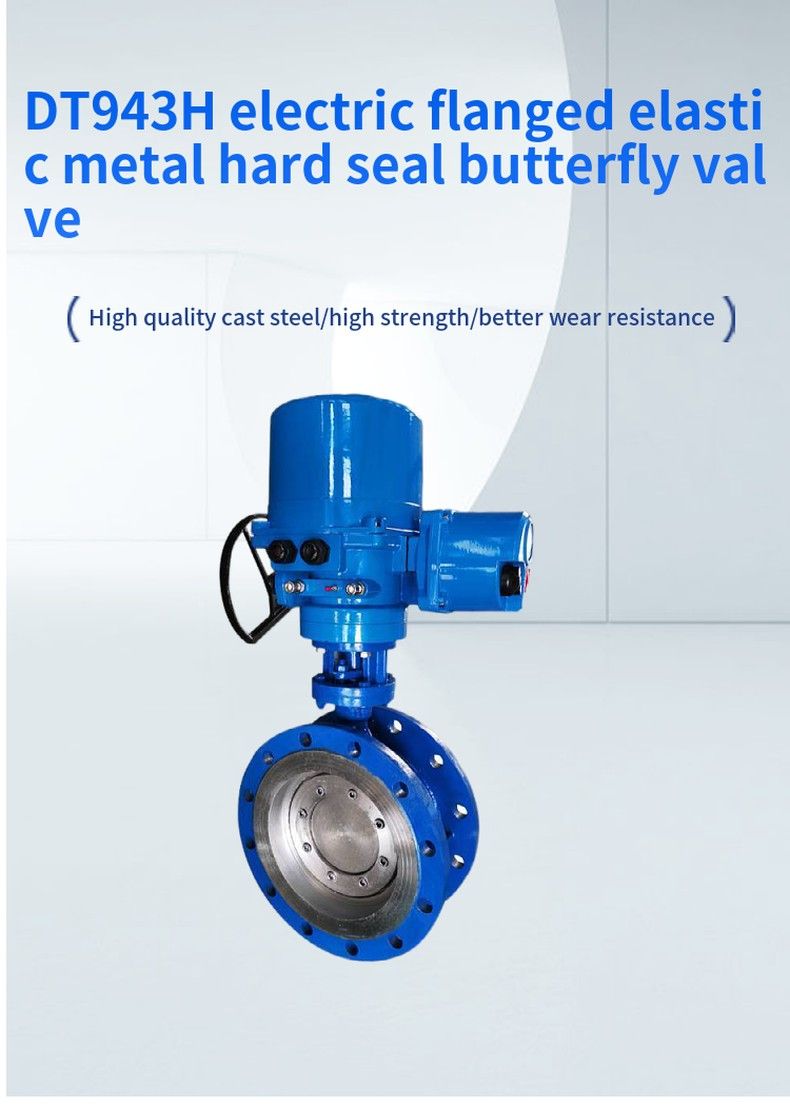

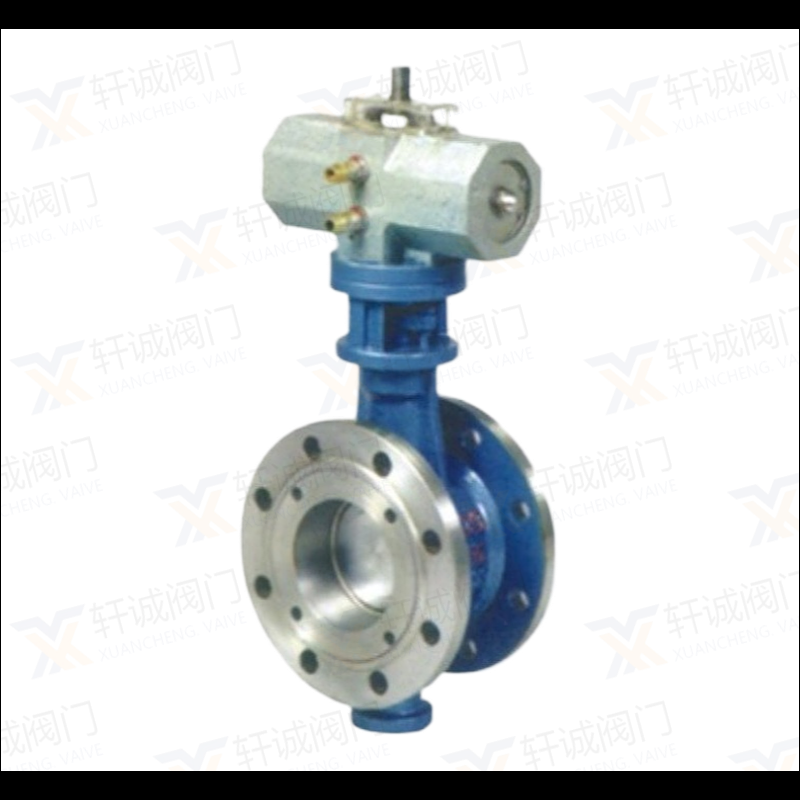

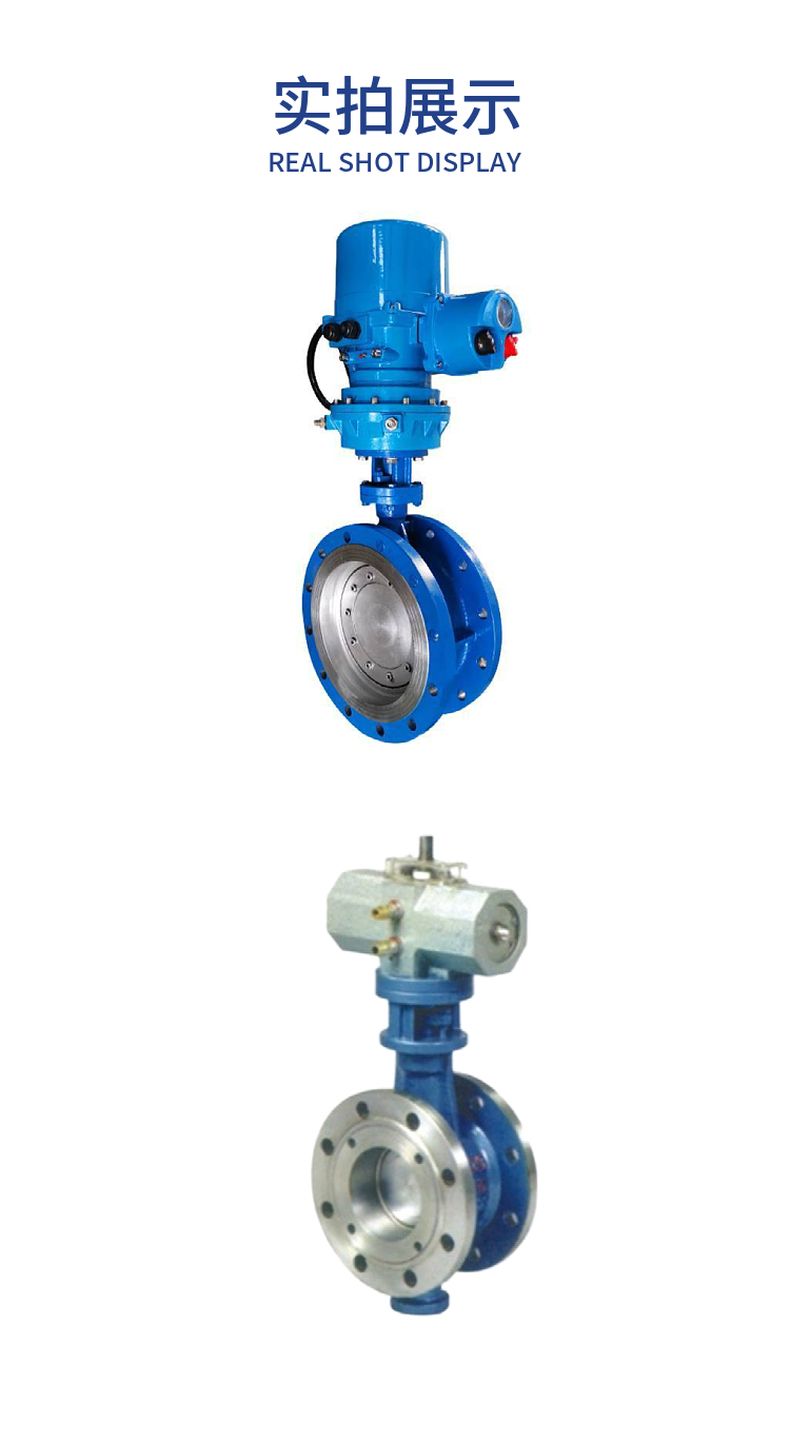

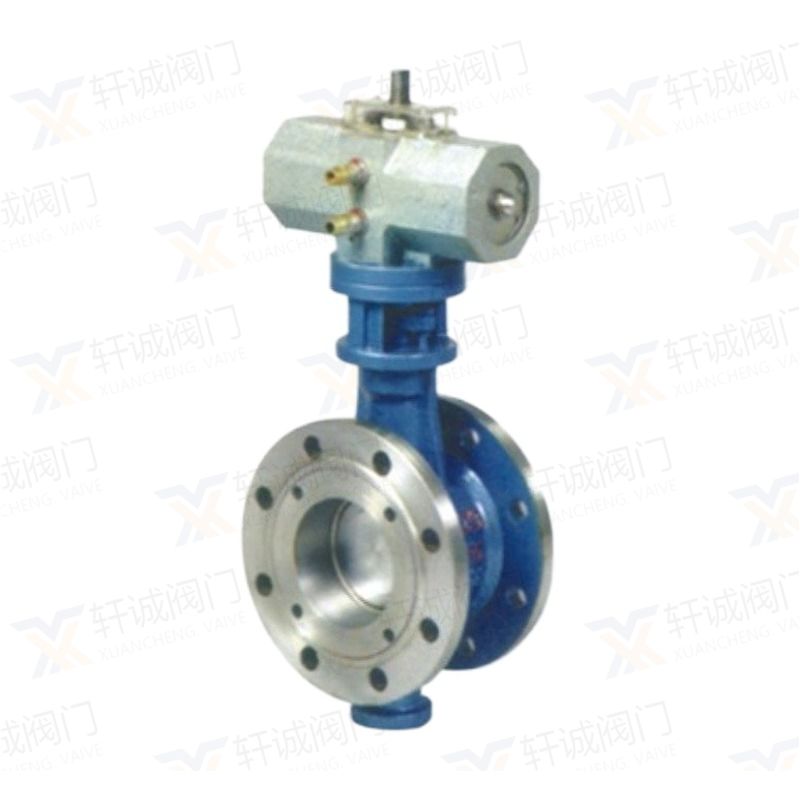

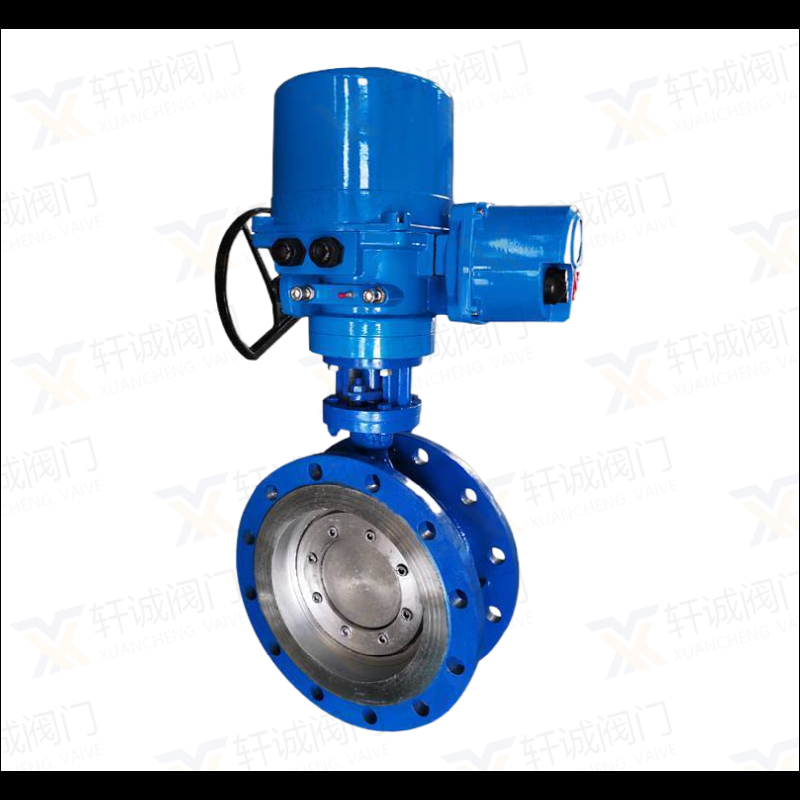

DT943H electric flanged elastic metal hard seal butterfly valve

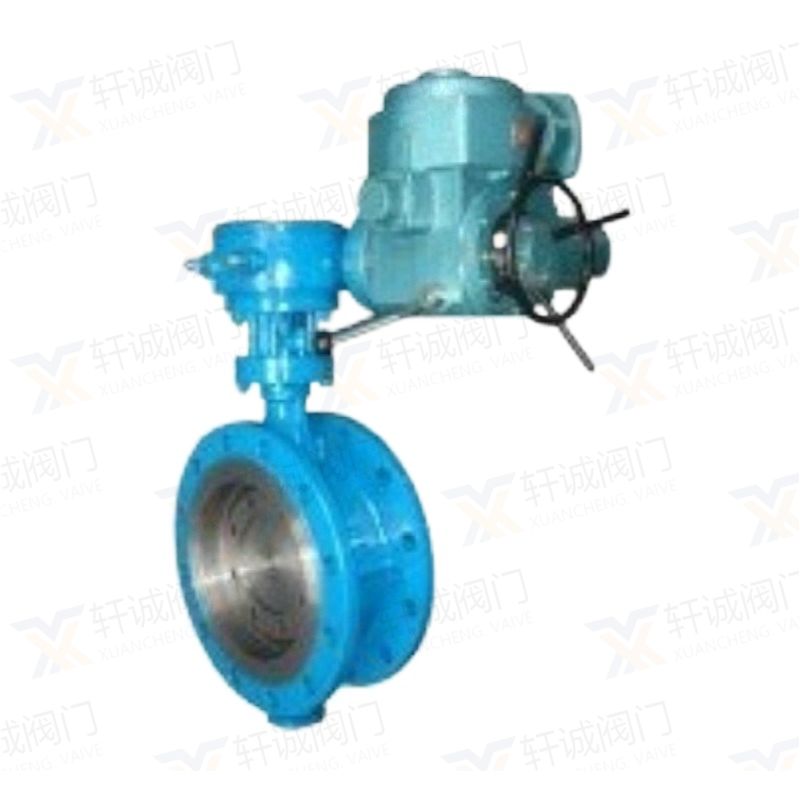

DT973H Electric clamp elastic metal hard seal butterfly valve Product Overview:
DT973H-6/10/16/40C.P.R.V Electric clamp elastic metal hard seal butterfly valve uses a "U" type stainless steel seal ring, the precision elastic seal ring with the polished butterfly plate three-dimensional eccentric contact. It solves the problem that the sealing surface of the traditional eccentric butterfly valve is still in the sliding contact friction when opening and closing 0° ~ 10°, and realizes the effect that the sealing surface of the butterfly plate is separated when opening and the contact is closed, so as to extend the service life and achieve the purpose of better sealing performance. Therefore, it is widely used in the medium temperature ≤550ºC metallurgy, electric power, petroleum, chemical industry, air, gas, combustible gas and water supply and drainage and other corrosive medium pipelines, is the best device to regulate the flow and cut off the fluid.

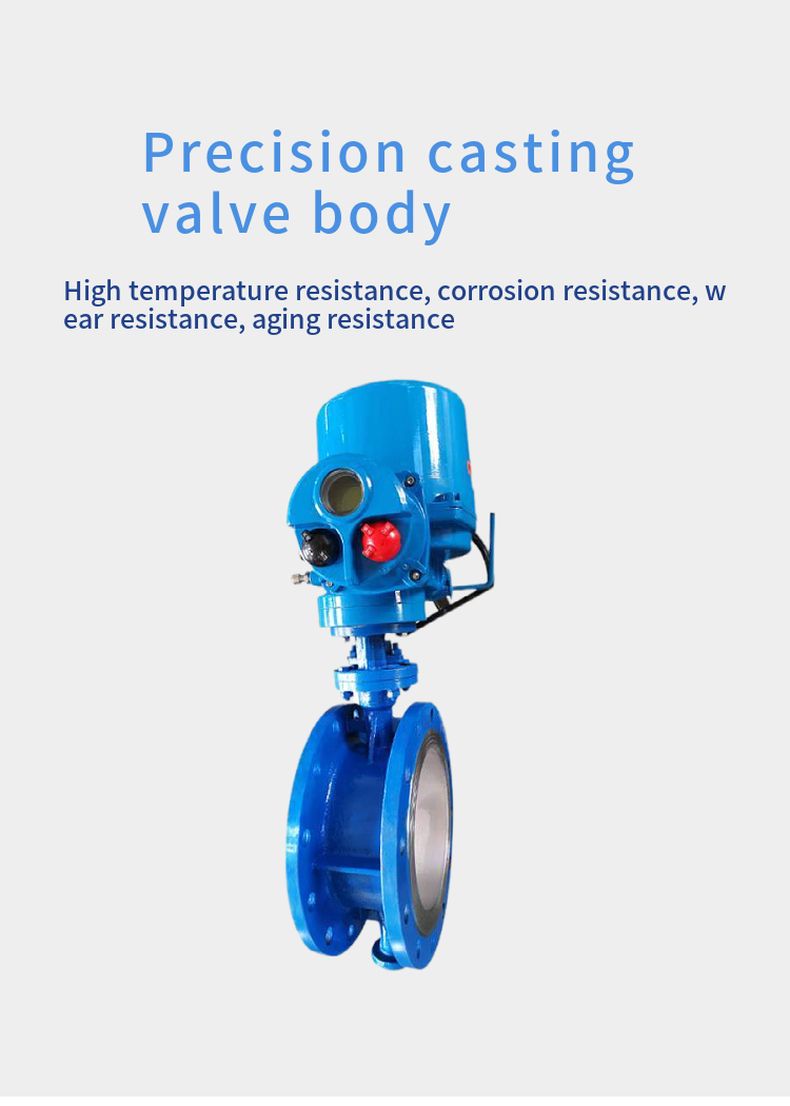

The butterfly valve has the advantages of simple structure, compact, light weight, easy installation and disassembly, convenient maintenance;

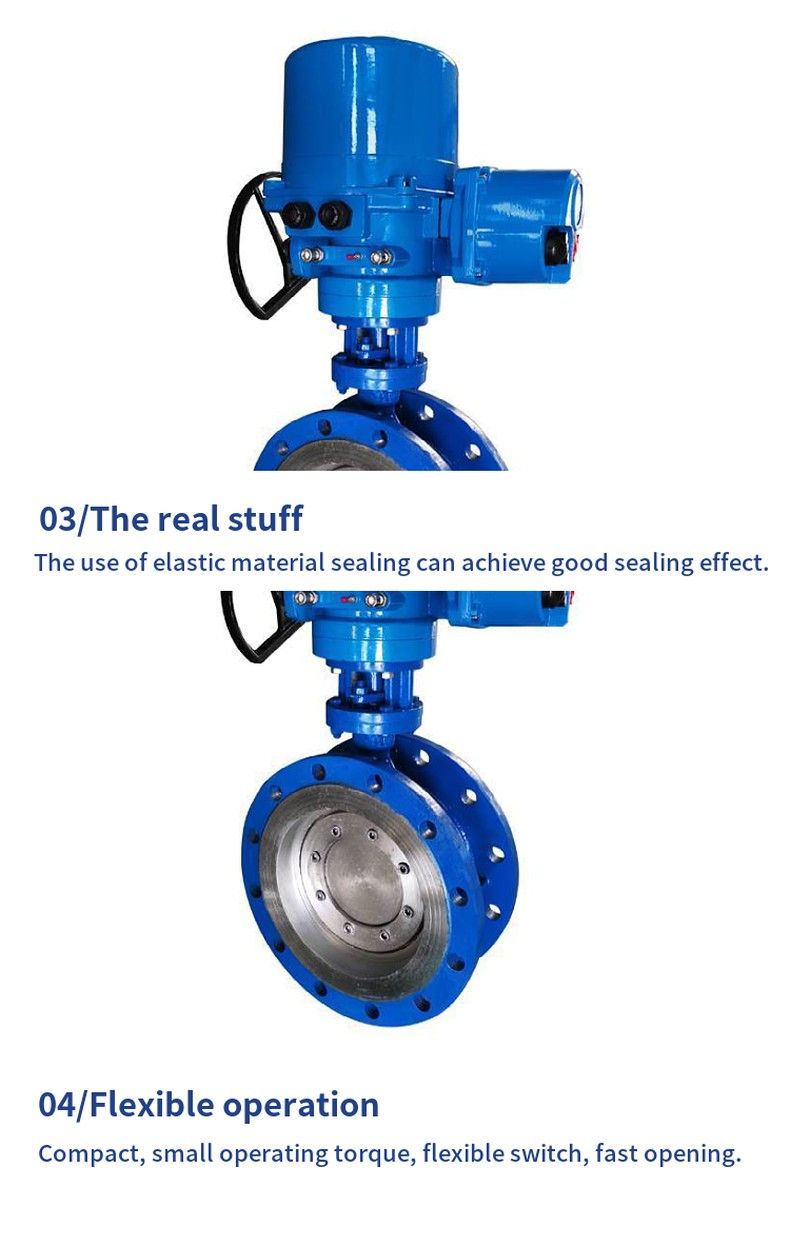

2, the butterfly valve adopts stainless steel "U" type sealing ring, has a certain elasticity no matter in the case of high temperature, low temperature, it and the butterfly plate have excellent sealing;
3, the butterfly valve's three-dimensional eccentricity, after strict calculation, "U" type sealing ring and butterfly plate almost no friction, long service life, and has the function of the tighter close;

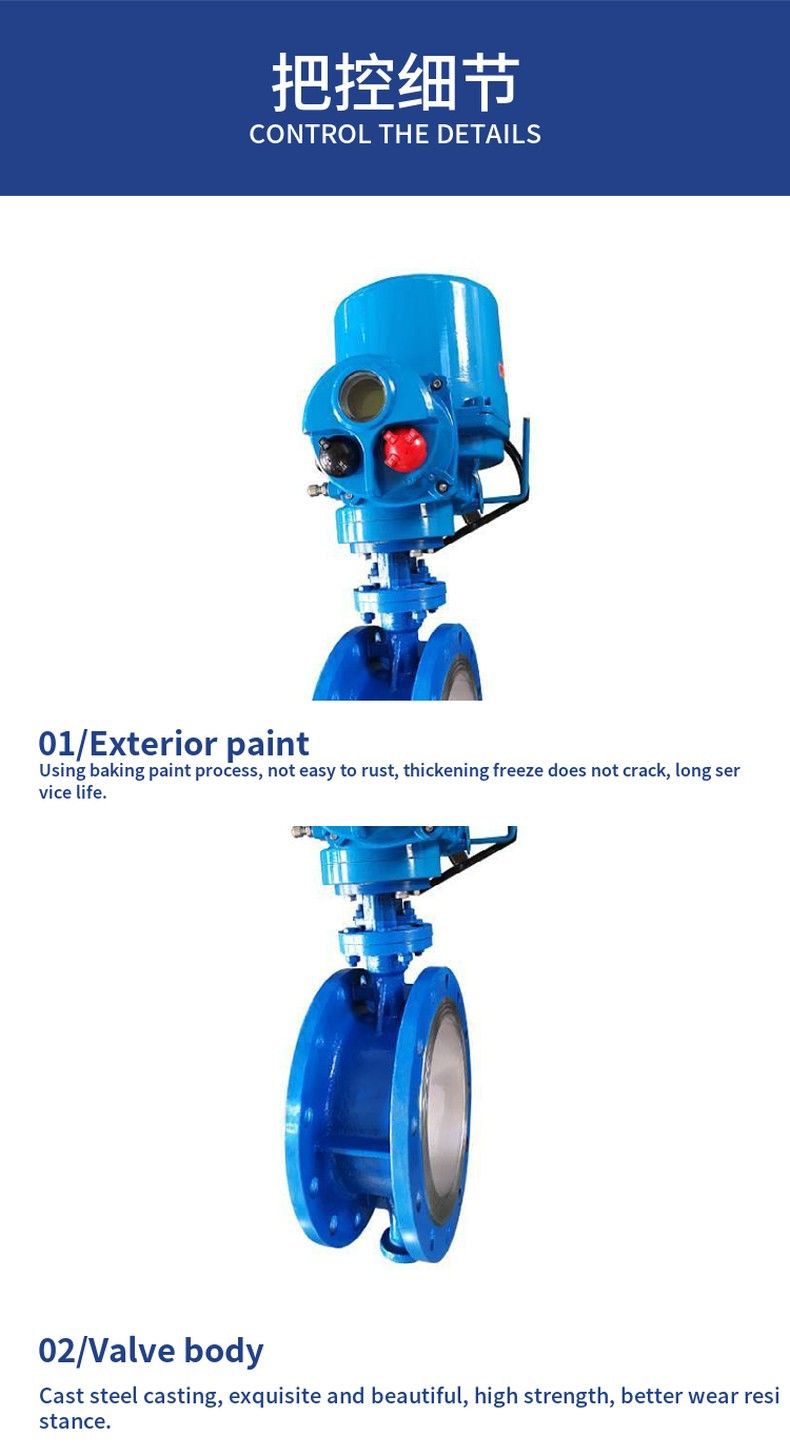

4, the sealing surface of the butterfly plate adopts surfacing welding cobalt-based cemented carbide, the sealing surface is wear-resistant, long service life;
5, the butterfly valve structure is unique, "switch" only need to turn the stem 90° to complete. The operation is flexible, convenient, labor-saving, not affected by the medium pressure, reliable sealing performance;
High temperature resistance, low temperature resistance, corrosion resistance.
Design standard :GB/T12238-1989
flange connection size :
GB/ T9113.1-2000; GB/T9113.2-2000
GB/T9115.1-2000; GB/T9115.2-2000
Structure length :GB/T12221-1989
Pressure test :GB/T13927-1992; JB/T9092-1999
Main technical parameters
Material of main parts
Three eccentric characteristics and principle
1, deviate from the center of the pipeline
2, deviate from the center of the sealing surface
3, inclined cone
when the valve is opened, the butterfly plate and the valve seat in close instant contact, the use of the butterfly plate eccentric 1, eccentric 2 quickly out of the valve seat, reduce the wear of the sealing pair, friction torque is small, open flexible. Eccentric cone 3, so that when the valve is opened or closed, the butterfly plate can pass through the valve seat hole to achieve contact sealing. In addition, the rotation radius of the conical butterfly plate is greater than the rotation radius of the contact position of the sealing pair, so the butterfly plate will be more and more tightly closed when the valve is closed, which can realize self-locking and prevent the butterfly plate from overpositioning.
DT973H-6/10C.P.R.V series electric clamping elastic metal hard seal butterfly valve
DT973H-16/25.P.R.V Series electric clip-on elastic metal hard seal butterfly valves
Note to users: H1, H2, H3 sizes in the table can be extended according to user needs (long rod butterfly valve), if special materials are required when ordering. Note: Dt- stands for elastic seal structure.

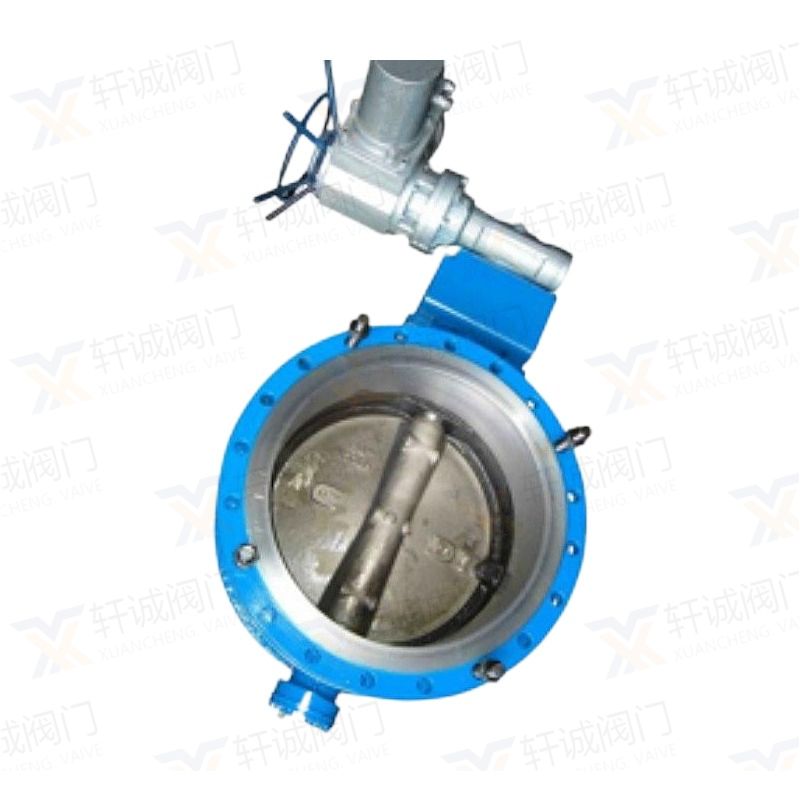

DT973H-40C.P.R.V series electric sandwich type elastic metal hard seal butterfly valve
