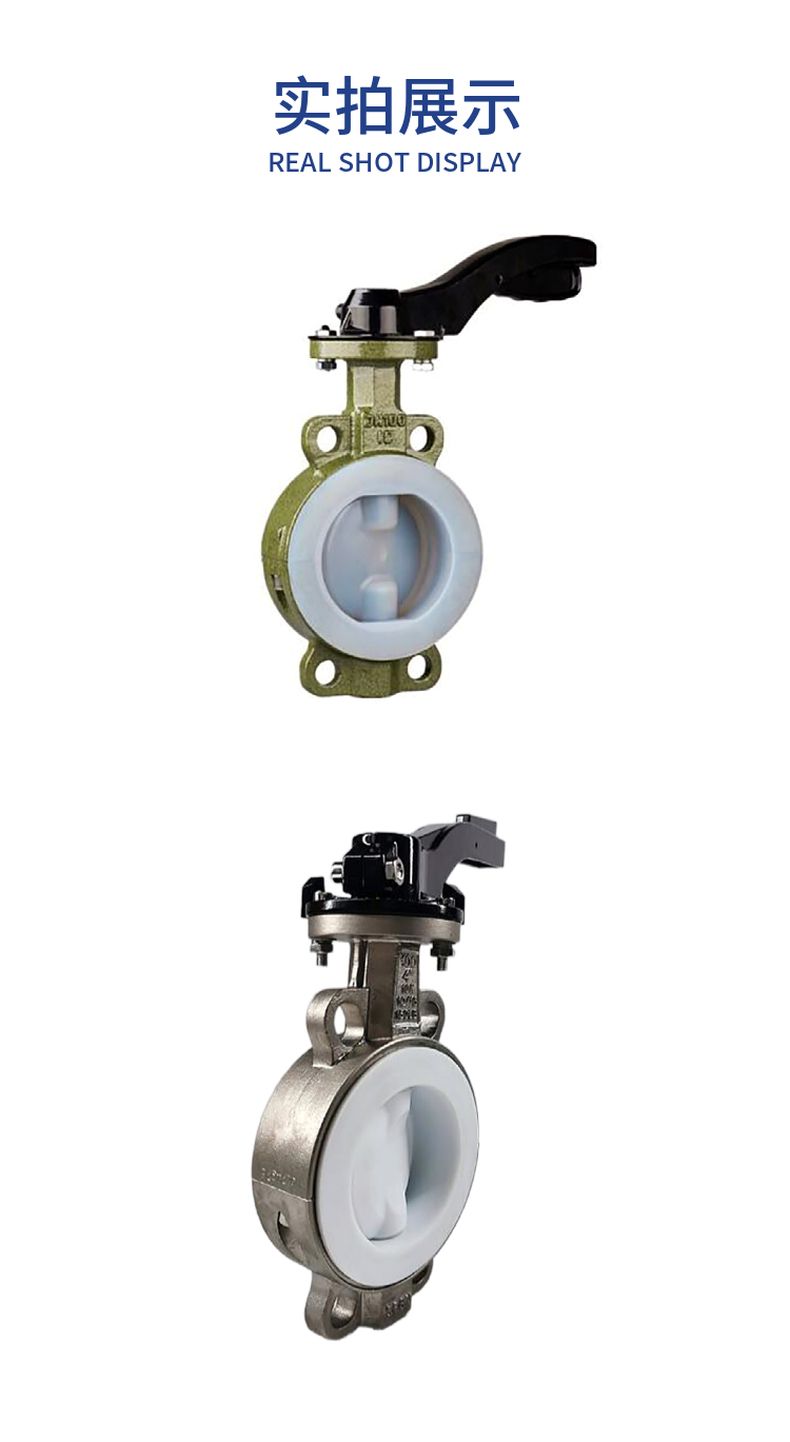

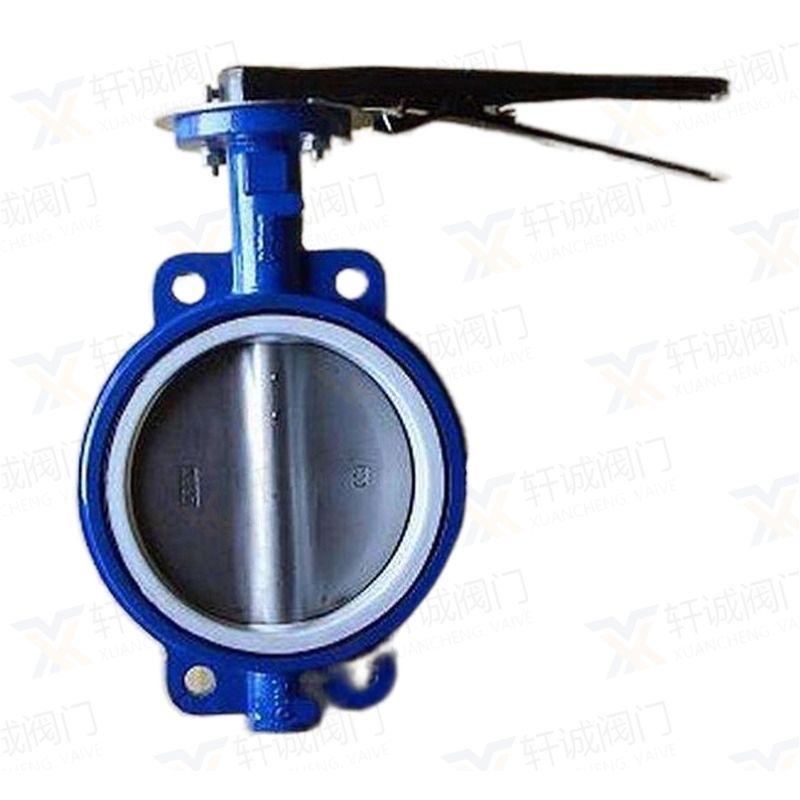

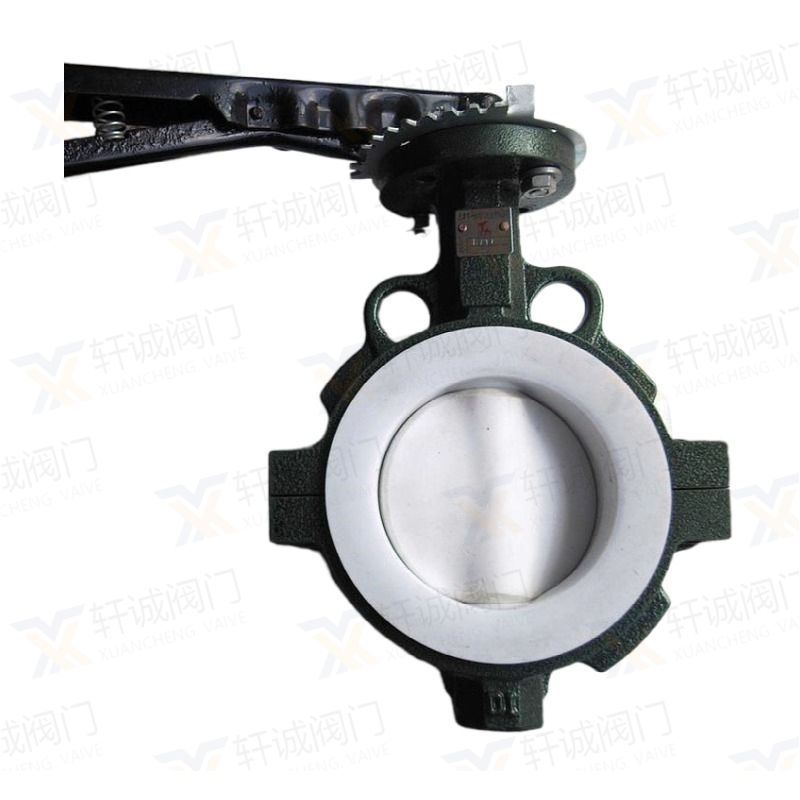

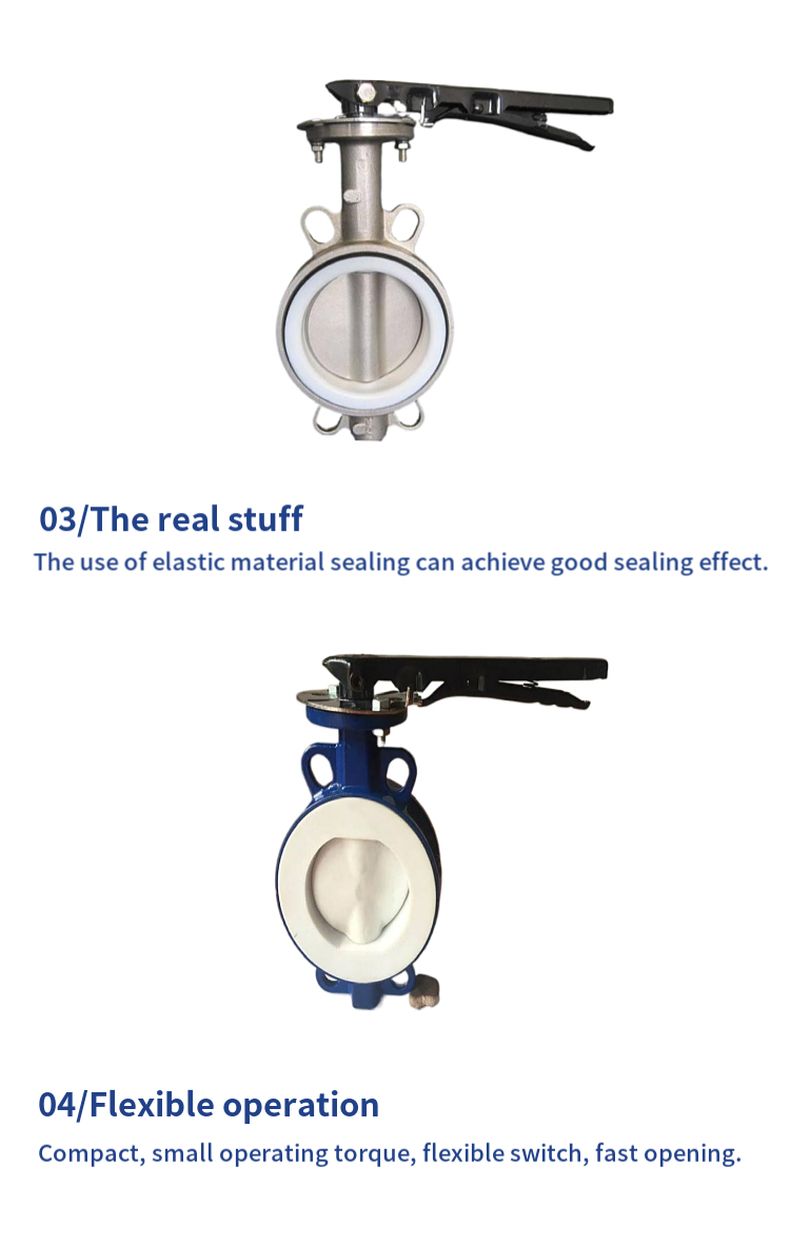

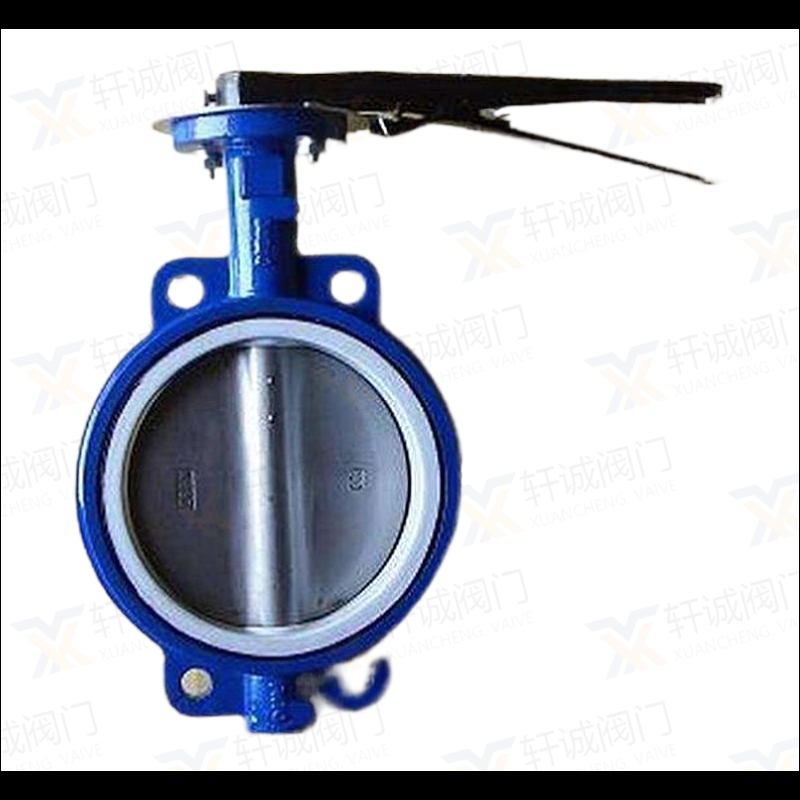

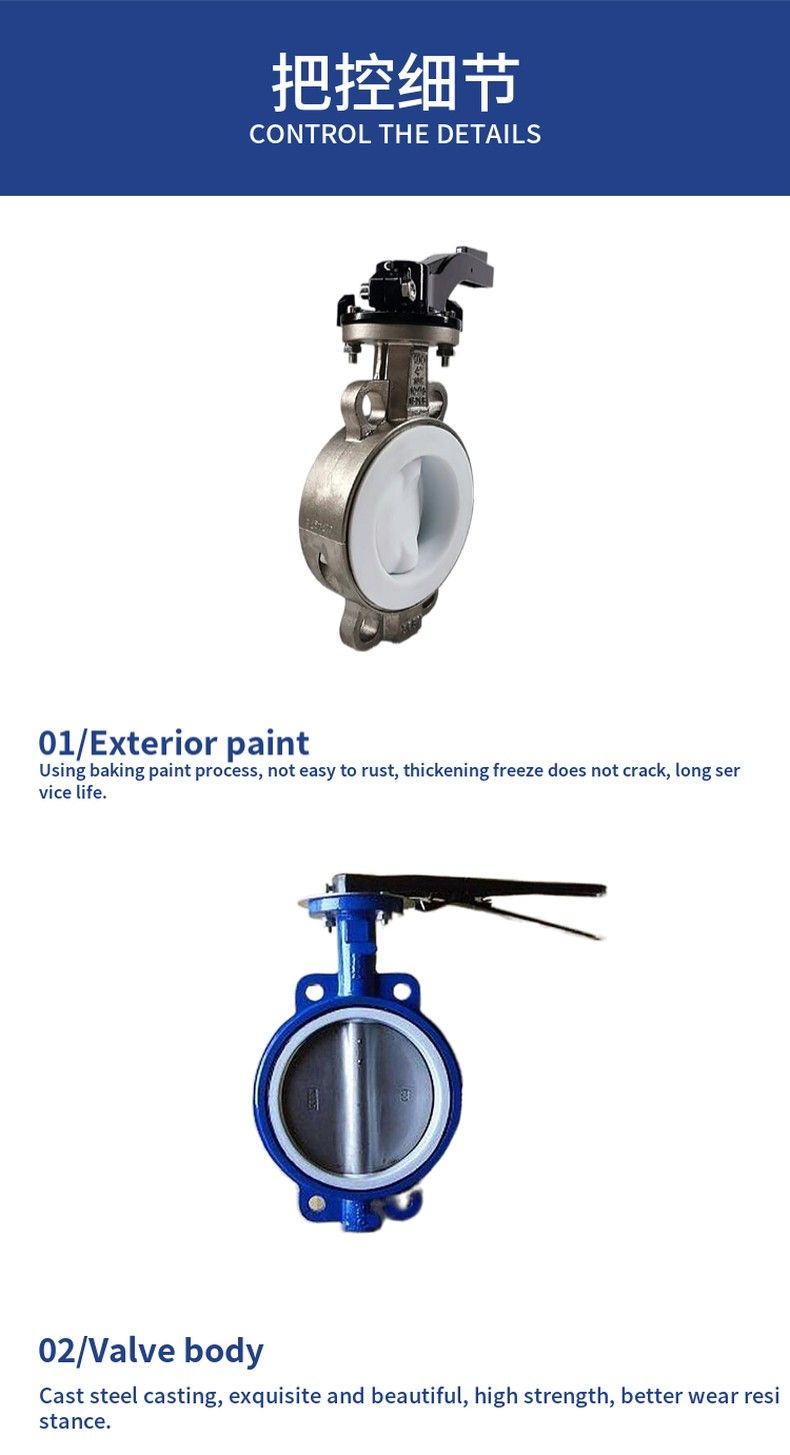

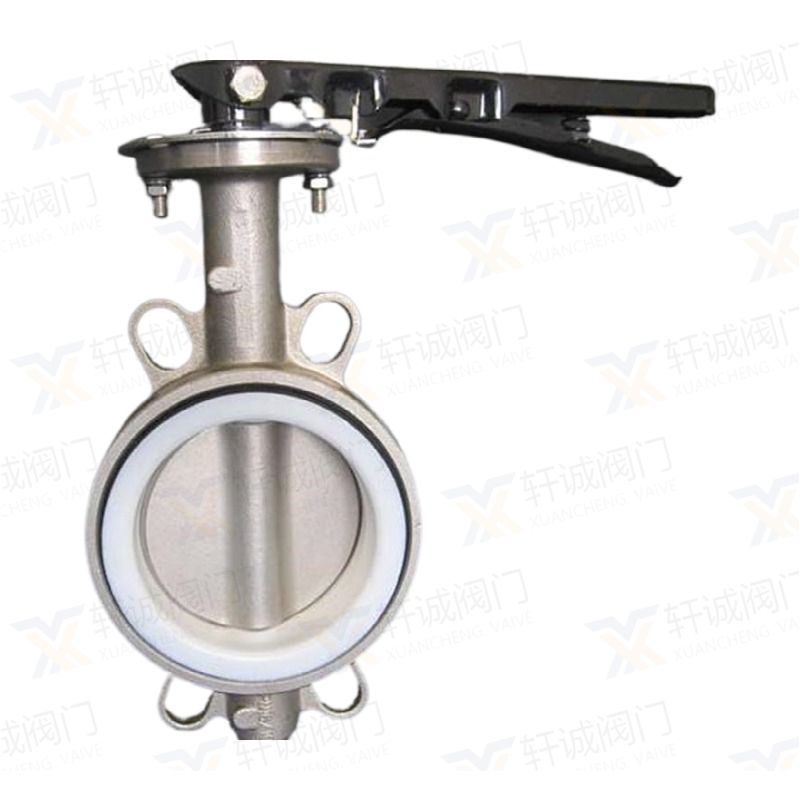

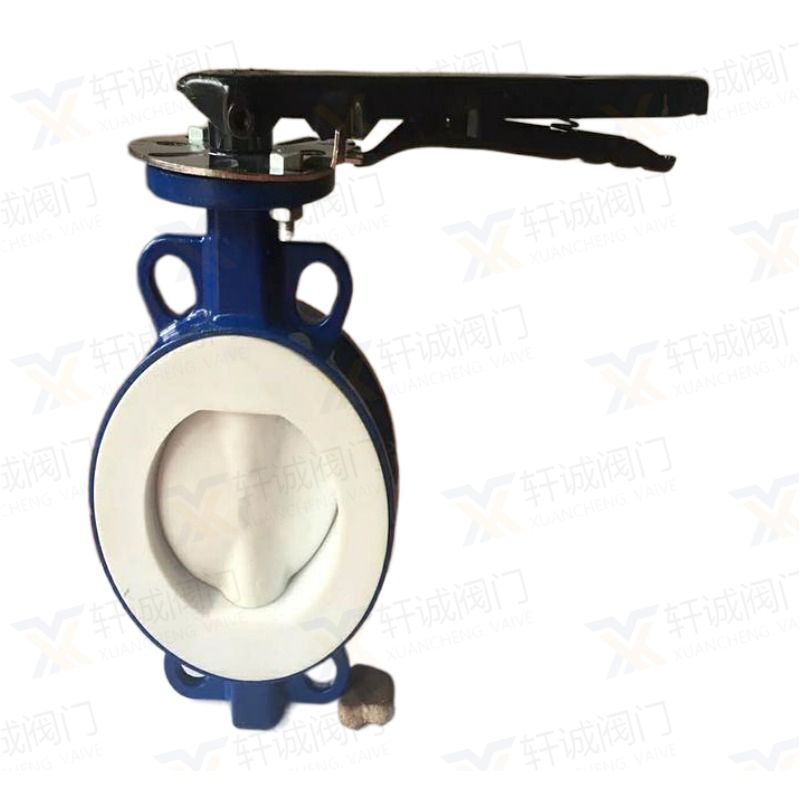

D71F4 clip-on fluorine lined butterfly valve

D71F4 clip-on fluorine lined butterfly valve

D71F4 clip-on fluorine lined butterfly valve

D71F4 clip-on fluorine lined butterfly valve

D71F4 clip-on fluorine lined butterfly valve

D71F4 clip-on fluorine lined butterfly valve

D71F4 clip-on fluorine lined butterfly valve

Share:

D71F4-10C, type clamping fluorine lined butterfly valve is suitable for the transportation of liquids and gases (including steam) in various types of industrial pipelines, especially for the use of severely corrosive media, such as: sulfuric acid, hydrofluoric- acid, phosphoric acid, chlorine gas, strong alkali, aqua royalty and other highly corrosive media.
The main shape and connection size

DN (mm)	NPS (inch)	L	D	D1	D2	F	B	N-? D	W	D0	H	WT(kg)
DN (mm)	NPS (inch)	PN0.6 MPa
40	1 1/2	106	130	100	80	3	16	4 -? 14	160		140	10
50	2	108	140	110	90	3	16	4 -? 14	200		160	12
65	2 1/2	112	160	130	110	3	16	4 -? 14	250		160	13
80	3	114	185	150	125	3	18	4 -? 18	250		170	14
100	4	127	205	170	145	3	18	4 -? 18	300		180	16
125	5	140	235	200	175	3	20	8 -? 18	300		275	18
150	6	140	260	225	200	3	20	8 -? 18		200	295	38
200	8	152	315	280	255	3	22	8 -? 18		200	320	74
250	10	250	370	335	310	3	24	12 -? 18		240	385	105
300	12	270	435	375	362	4	24	12 -? 23		240	390	142
350	14	290	485	445	412	4	26	12 -? 23		240	460	179
400	16	310	535	495	462	4	28	16 -? 23		280	510	220
450	18	330	590	550	518	4	28	16 -? 23		280	540	268
500	20	350	640	600	568	4	30	16 -? 23		320	570	378
600	24	390	755	705	670	5	30	20 -? 25		320	660	608
seven hundred	28	430	860	810	775	5	32	24 -? 25		360	710	1050
800	32	470	975	920	880	5	34	24 -? 30		360	780	1320
900	36	510	1075	1020	980	5	36	24 -? 30		380	885	1795
1000	40	550	1175	1120	1080	5	36	28 -? 30		400	990
PN1.0 MPa
40	1 1/2	106	145	110	85	3	18	4 -? 18	160		140	10
50	2	108	160	125	100	3	20	4 -? 18	200		160	12
65	2 1/2	112	180	145	120	3	20	4 -? 18	250		165	14
80	3	114	195	160	135	3	22	4 -? 18	250		170	16
100	4	127	215	180	155	3	22	8 -? 18	300		180	18
125	5	140	245	210	185	3	24	8 -? 18	300		275	20
150	6	140	280	240	210	3	24	8 -? 23		200	295	38
200	8	152	335	295	265	3	26	8 -? 23		200	320	74
250	10	250	390	350	320	3	28	12 -? 23		240	385	105
300	12	270	440	400	368	4	28	12 -? 23		240	390	142
350	14	290	500	460	428	4	30	16 -? 23		240	460	179
400	16	310	565	515	482	4	32	16 -? 25		280	510	220
450	18	330	615	565	532	4	32	20 -? 25		280	540	268
500	20	350	380	620	585	4	34	20 -? 25		320	570	378
600	24	390	780	725	685	5	36	20 -? 30		320	660	608
seven hundred	28	430	895	840	800	5	40	20 -? 30		360	710	1050
800	32	470	1010	950	905	5	44	24 -? 34		360	780	1320
900	36	510	1110	1050	1005	5	46	28 -? 34		380	885	1795
1000	40	550	1220	1160	1115	5	50	28 -? 34		400	990	1900
