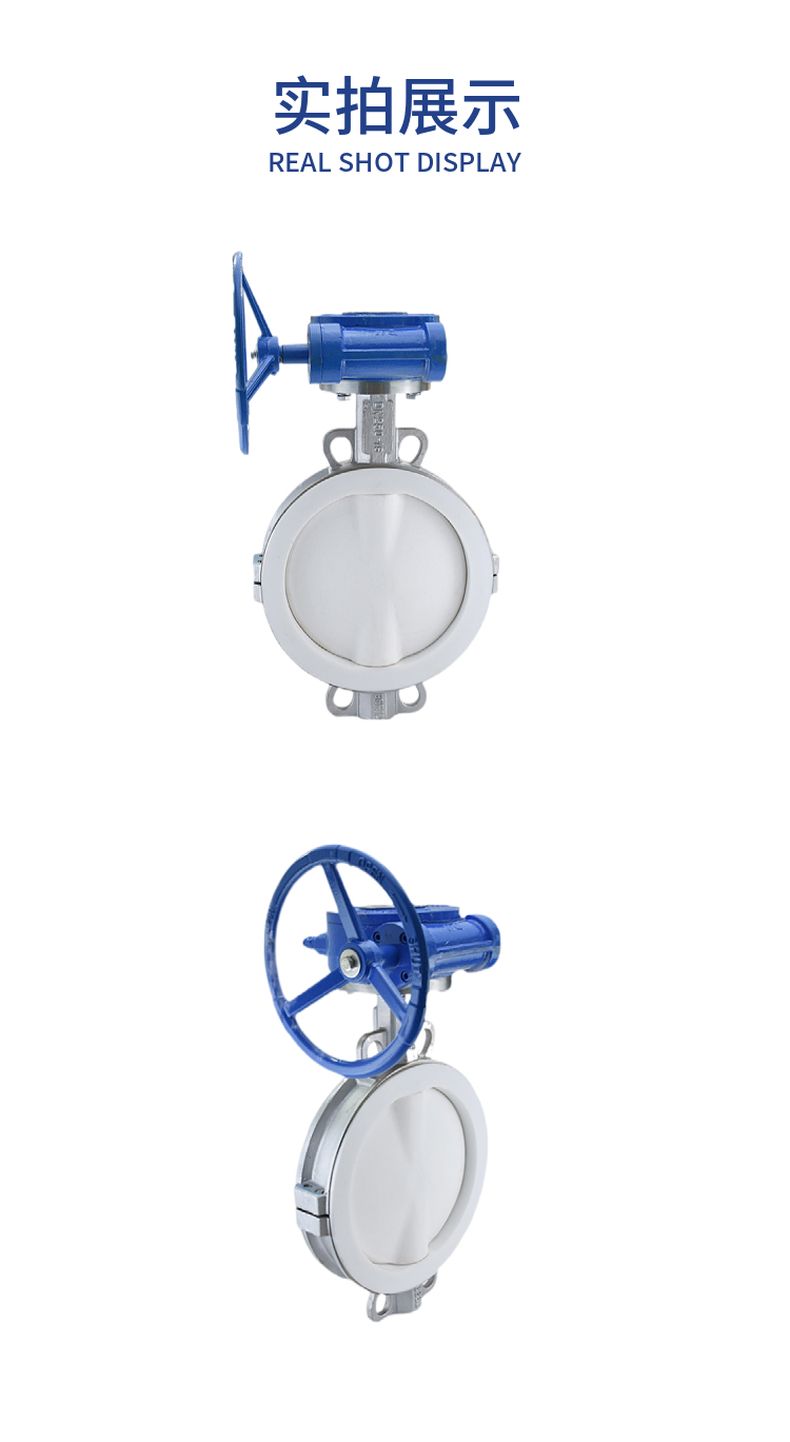

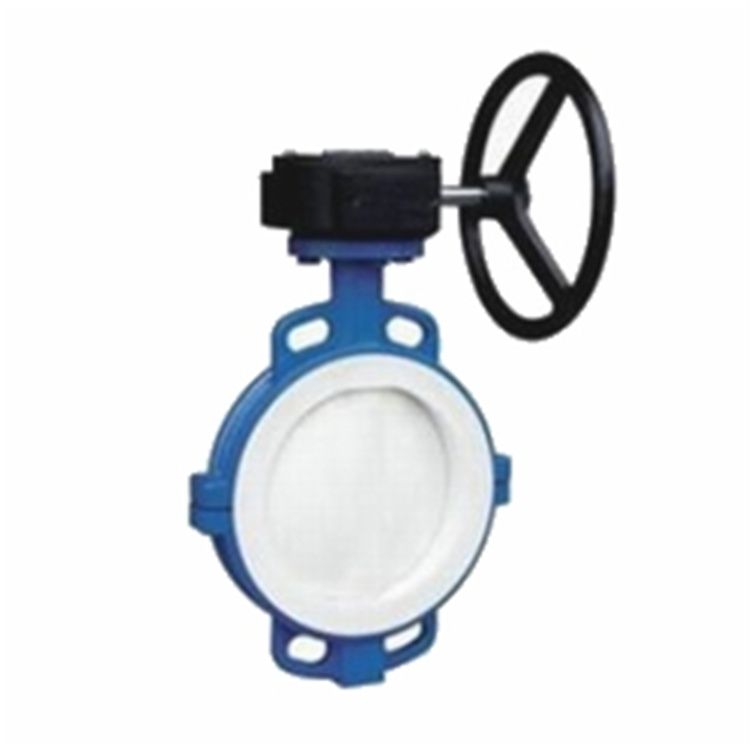

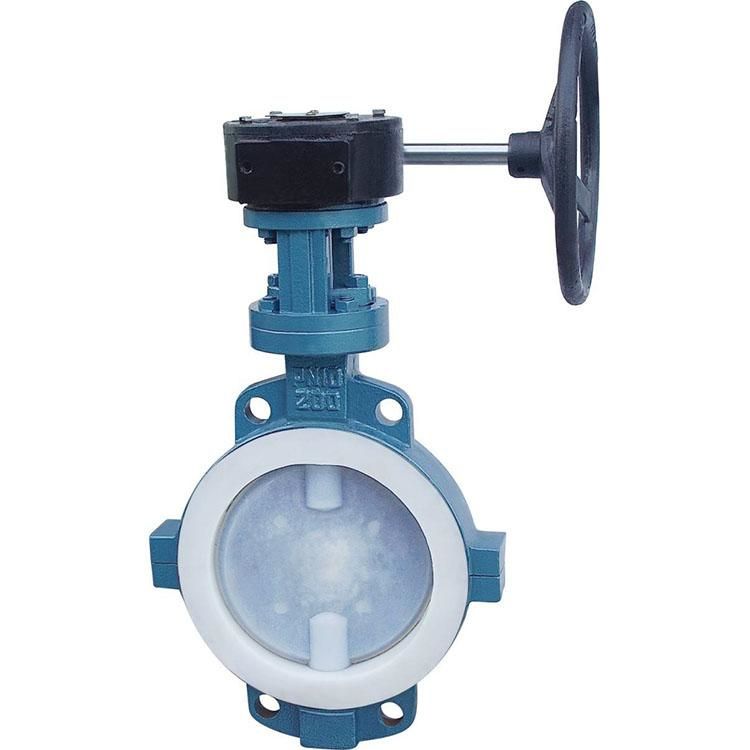

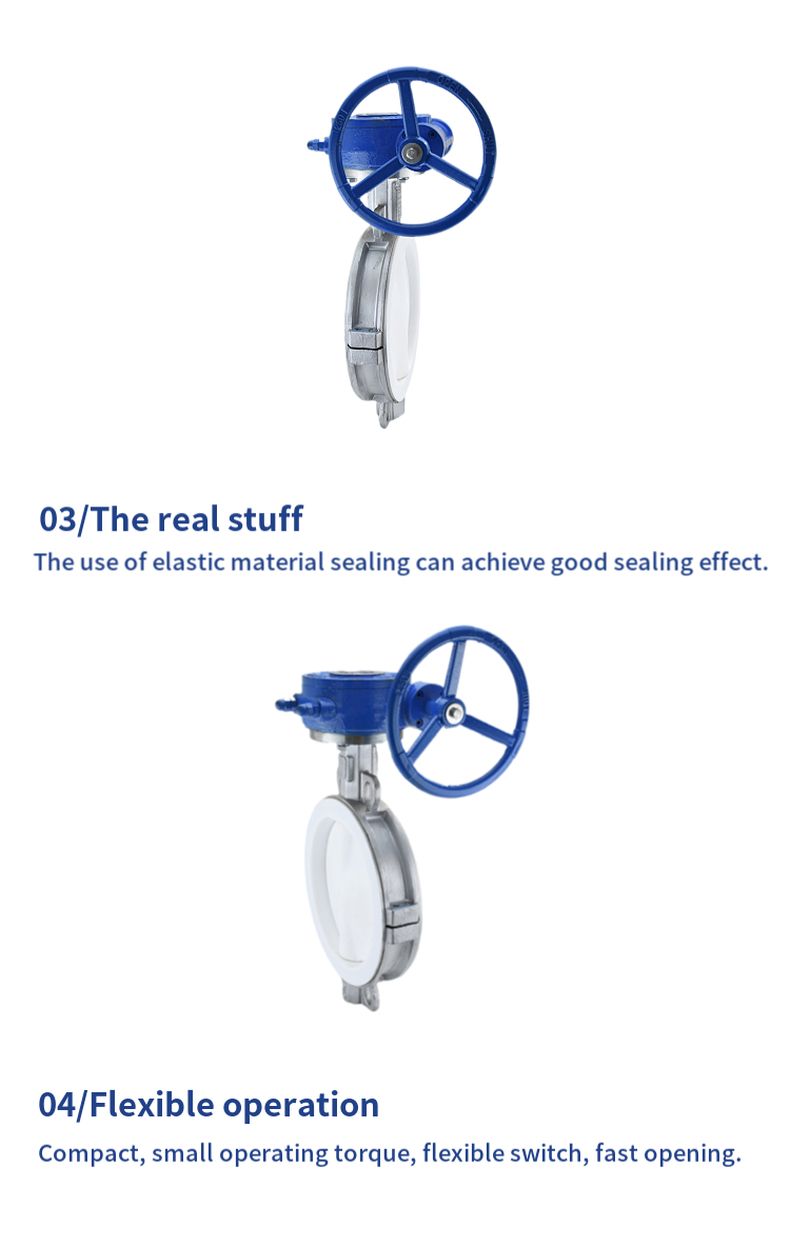

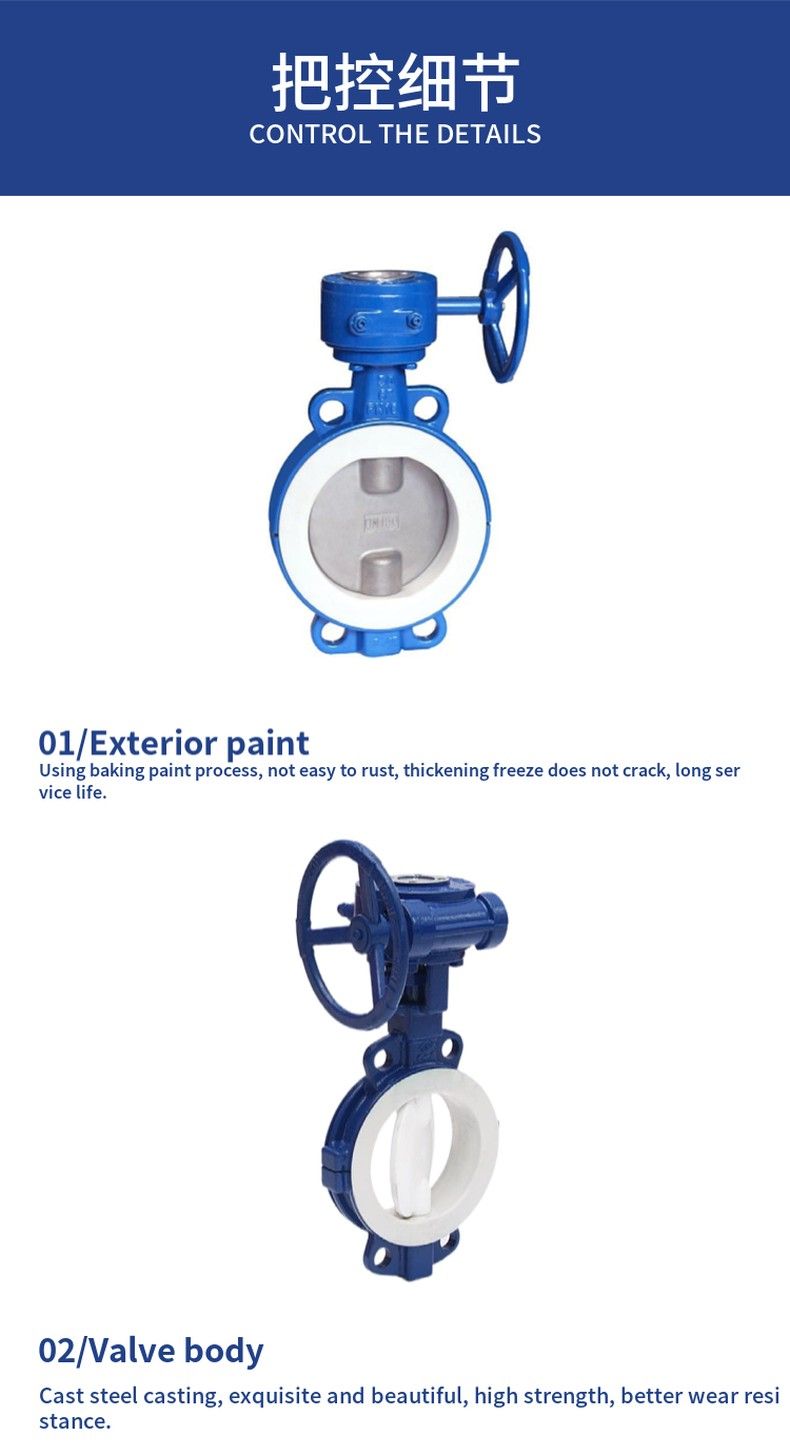

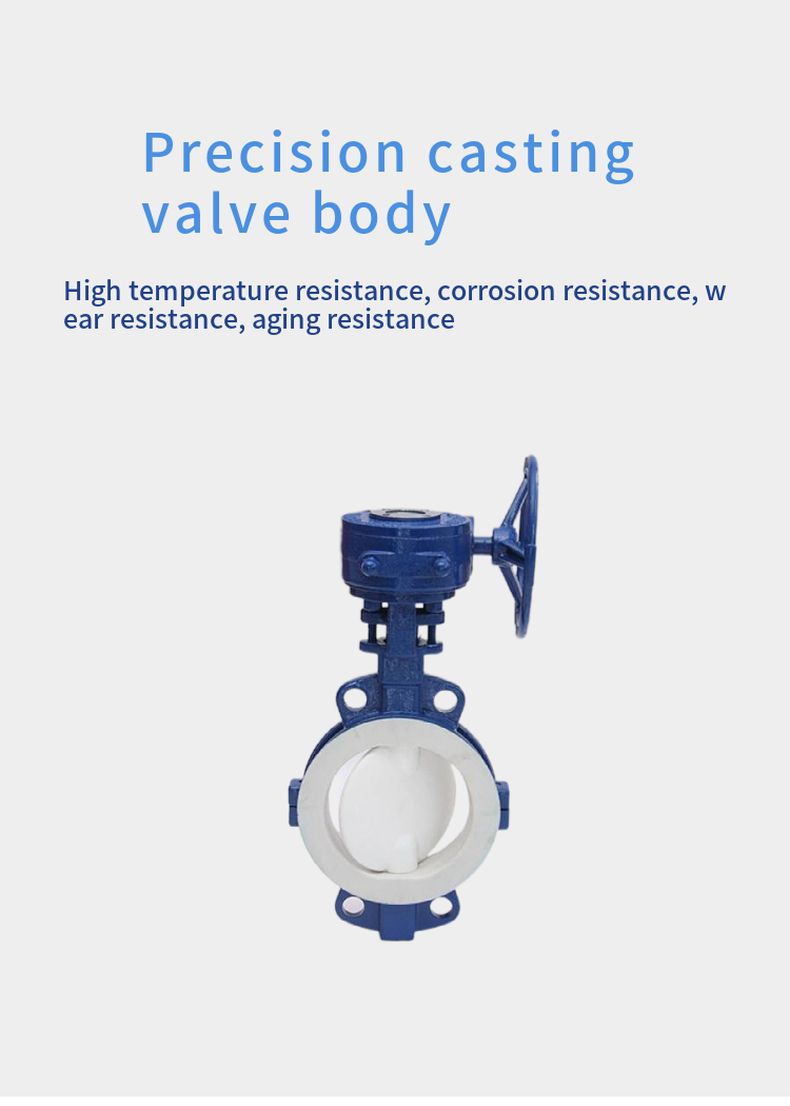

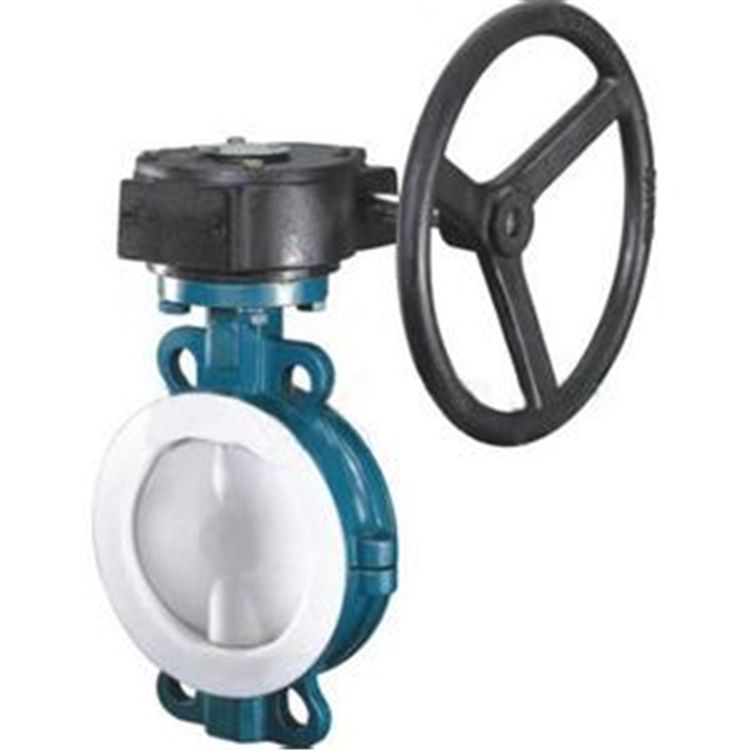

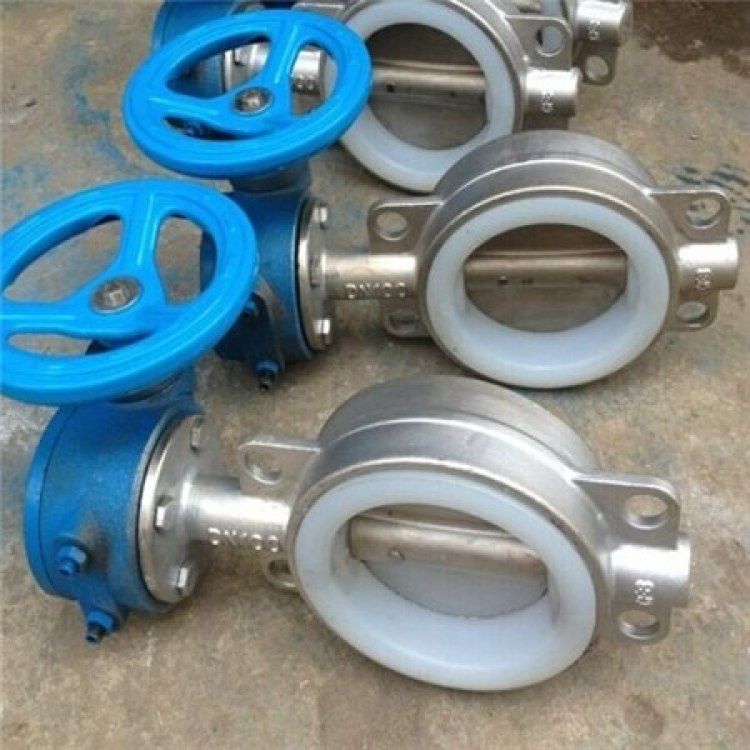

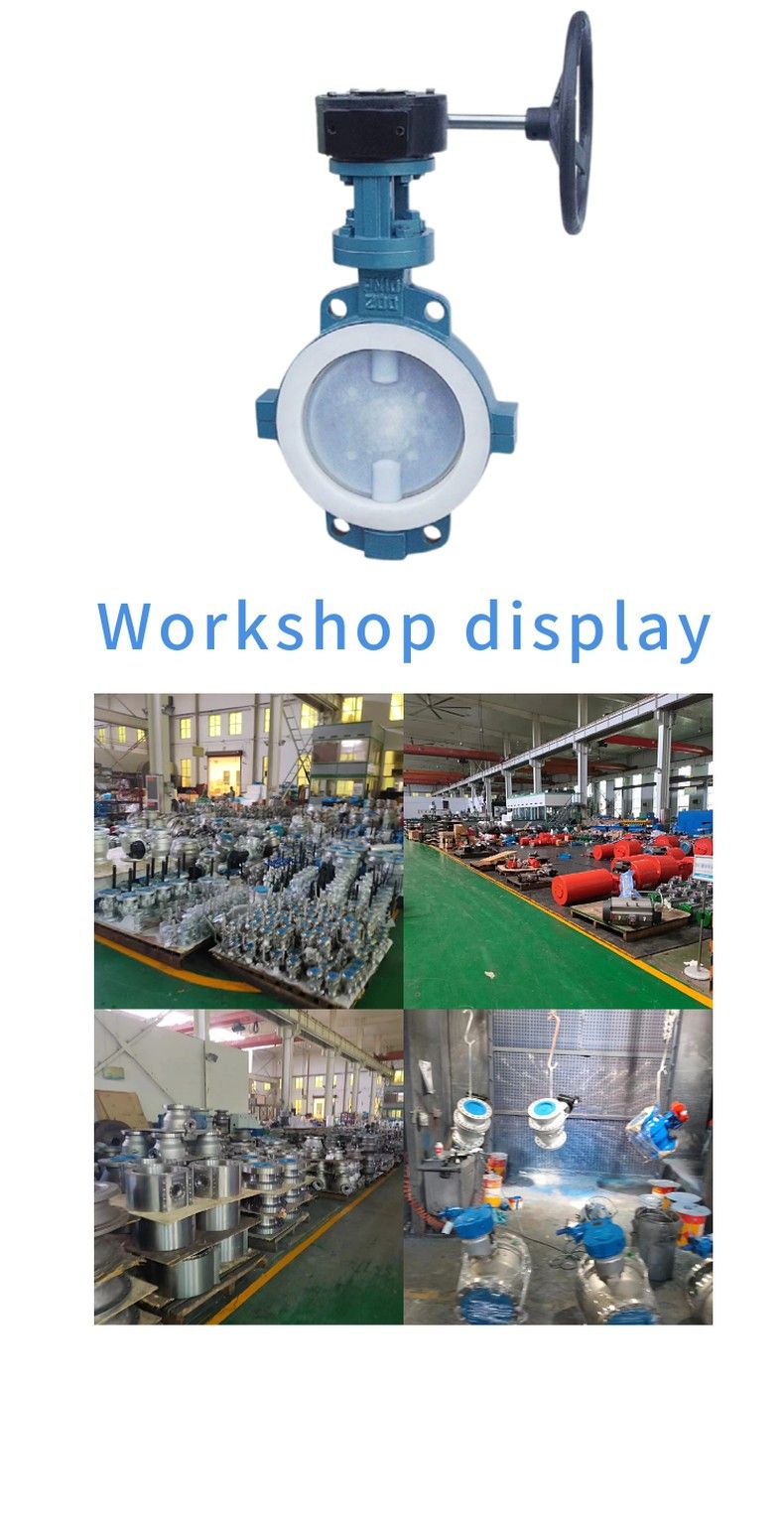

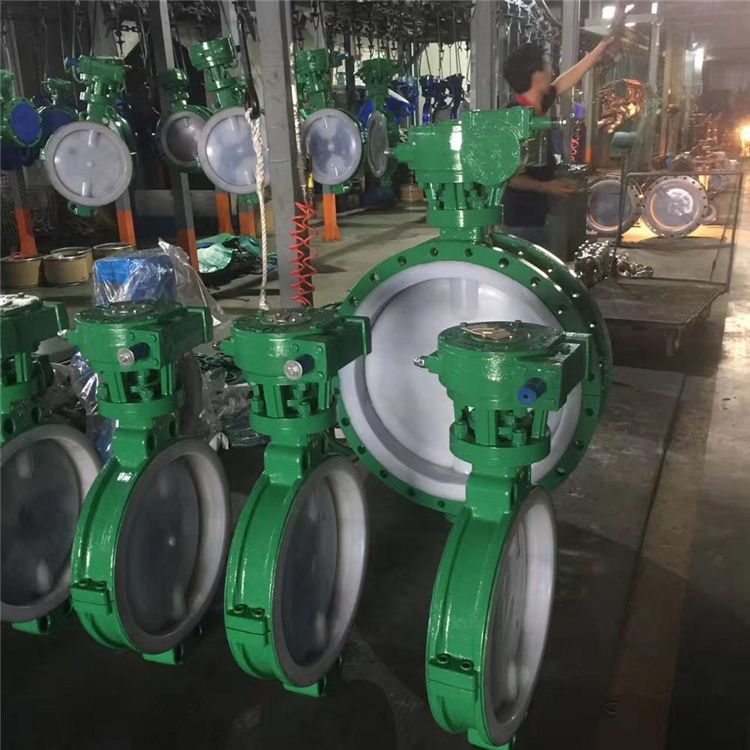

D371F46 Splint type fluorine lined butterfly valve

Product Name:	Clamp type fluorine lined butterfly valve	Product Model:	D371F46
Nominal diameter:	DN40 to DN1200	Seat seal:	F4, F46
Nominal pressure:	1.0Mpa to 1.6MPa	Connection method:	Sandwich type, flange type
Applicable temperature:	-25ºC to +150ºC	Drive mode:	Manual, worm gear, electric, pneumatic
Body material:	Cast iron, cast steel, stainless steel	Manufacturing standard:	GB, German DIN, American API, ANSI
Applicable media:	Strong acid, alkali, sulfuric acid, aqua regia corrosive liquid	Manufacturer:	Xuan Cheng Valve Co., LTD

Product Description

D371F46 clamp lined fluorine butterfly valve is widely used in anticorrosive pipeline system. It is mainly used to open, close and adjust the valve. Fully lined polytetrafluoroethylene (F4), polytrifluorovinyl chloride (F3) and polyperfluorinated ethylene propylene (F46) fluorine plastic lined valve, with corrosion resistance, no leakage, long life and other advantages. It is suitable for concentrated sulfuric acid, hydrochloric acid, nitric acid, hydrofluoric- acid, aqua aqua, various organic acids, strong acids, oxidizing media or high temperature oleic acid, high temperature concentrated acetic acid, acid-base alternations and a variety of organic solvents and other strong corrosive media.

Product Features

1, the middle line butterfly valve is the whole butterfly plate and the seat in 360° circumference concentric (middle line), with two-way sealing function, pressure, flow can be freely adjusted;
2, four stage loading elastic seal, absolutely ensure the valve inside and outside zero leakage;
a, the special transition curve at the joint of the shaft head and the butterfly plate circle and the reasonable interference of the seat;
b, the end face of the shaft head adopts the combination of elastic O-ring, rigid washer and elastic rubber pad at the shaft shoulder;
c, the radial of the shaft adopts the combination of O-ring and metal pad;
d, the valve seat is inserted in the groove of the body with elastic strips;
3, using adjustable elastic pin positioning. Accurate positioning, simple structure.

Application standards

Design criteria	GB12238
Structural length	GB12221
Flange standard	JB/T79-94
Flange standard	GB9113.1-26
Inspection test	GB/T13927
Drive mode	Worm gear, manual, electric, pneumatic

Performance specifications

Part name	Materials
Upper and lower body	Cast iron, cast steel, stainless steel, lining F46, F4
Valve seat	Cast steel
Butterfly plate with rod	Cast steel, stainless steel, lined with F46, F4
Packing	F4
Liner	Silicone rubber
Worm wheel handle	Nodular cast iron

Main contour connection size 1.0MPa

Nominal diameter		Standard value							Reference values
DN (mm)	NPS (inch)	L	D	D1	D2	f	b	Z - phi d	D0	H	W(kg)
DN (mm)	NPS (inch)	PN1.0 (MPa)
40	1 1/2	33	145	110	85	3	18	4-18	160	140	3
50	2	43	160	125	100	3	20	4-18	200	200	4
65	2 1/2	46	180	145	120	3	20	4-18	250	250	6
80	3	46	195	160	135	3	22	4-18	250	250	8
100	4	52	215	180	155	3	22	8 - phi 18	300	185	12
125	5	56	245	210	185	3	24	8 - phi 18	300	203	18
150	6	56	280	240	210	3	24	8-23	200	225	28
200	8	60	335	295	265	3	26	8-23	200	275	56
250	10	68	390	350	320	3	28	12-23	240	315	72
300	12	78	440	400	368	4	28	12-23	240	348	88
350	14	78	500	460	428	4	30	16-23	280	415	170
400	16	102	565	515	482	4	32	16-25	280	460	145
450	18	114	615	565	532	4	32	20-25	320	500	165
500	20	127	670	620	585	4	34	20-30	320	530	195
600	24	154	780	725	685	5	36	20-30	360	610	268
seven hundred	28	165	895	840	800	5	40	24 - phi 30	360	675	320
800	32	190	1010	950	905	5	44	24 - phi 30	360	805	395
900	36	203	1110	1050	1005	5	46	28-34	380	995	450
1000	40	216	1220	1160	1115	5	50	28-34	400	1170	680
1200	48	254	1450	1380	1325	5	56	32-41	400	1295	825

Main form connection size 1.6MPa

Nominal diameter		Standard value							Reference values
DN (mm)	NPS (inch)	L	D	D1	D2	f	b	Z - phi d	D0	H	W(kg)
DN (mm)	NPS (inch)	PN1.6 (MPa)
40	1 1/2	33	145	110	85	3	18	4-18	200	145	4
50	2	43	160	125	100	3	20	4-18	200	150	5
65	2 1/2	46	180	145	120	3	20	4-18	250	160	7
80	3	46	195	160	135	3	22	8 - phi 18	250	170	10
100	4	52	215	180	155	3	24	8 - phi 18	300	185	14
125	5	56	245	210	185	3	26	8 - phi 18	300	210	22
150	6	56	280	240	210	3	28	8-23	200	230	32
200	8	60	335	295	265	3	30	12-23	240	285	66
250	10	68	405	355	320	3	32	12-25	240	325	80
300	12	78	460	410	375	4	34	12-25	280	360	94
350	14	78	520	470	435	4	38	16-25	280	430	125
400	16	102	580	525	485	4	40	16-30	320	475	150
450	18	114	640	585	545	4	44	20-30	320	525	172
500	20	127	705	650	608	4	46	20-34	320	565	225
600	24	154	840	770	718	5	54	24-41	360	620	290
seven hundred	28	165	910	840	788	5	54	24-41	360	686	268
800	32	190	1020	950	898	5	54	24-41	380	815	425
900	36	203	1120	1050	998	5	54	28-41	400	1010	495
1000	40	216	1255	1170	1110	5	60	28 - phi 48	400	1185	710

Declaration: D371F46 clip-lined fluorine butterfly valve specifications, structure and size provided by Xuan Cheng Valve Co., LTD., how to choose the suitable D371F46 clip-lined fluorine butterfly valve products, so that it is safe, reliable and economically applicable in the process control, you can call our sales department and technical department, we will answer you in the shortest time!
