CD7Q41X hydraulic turbine valve set

CD7Q41X hydraulic turbine valve set Product model: CD7Q41X
Product overview:
Our

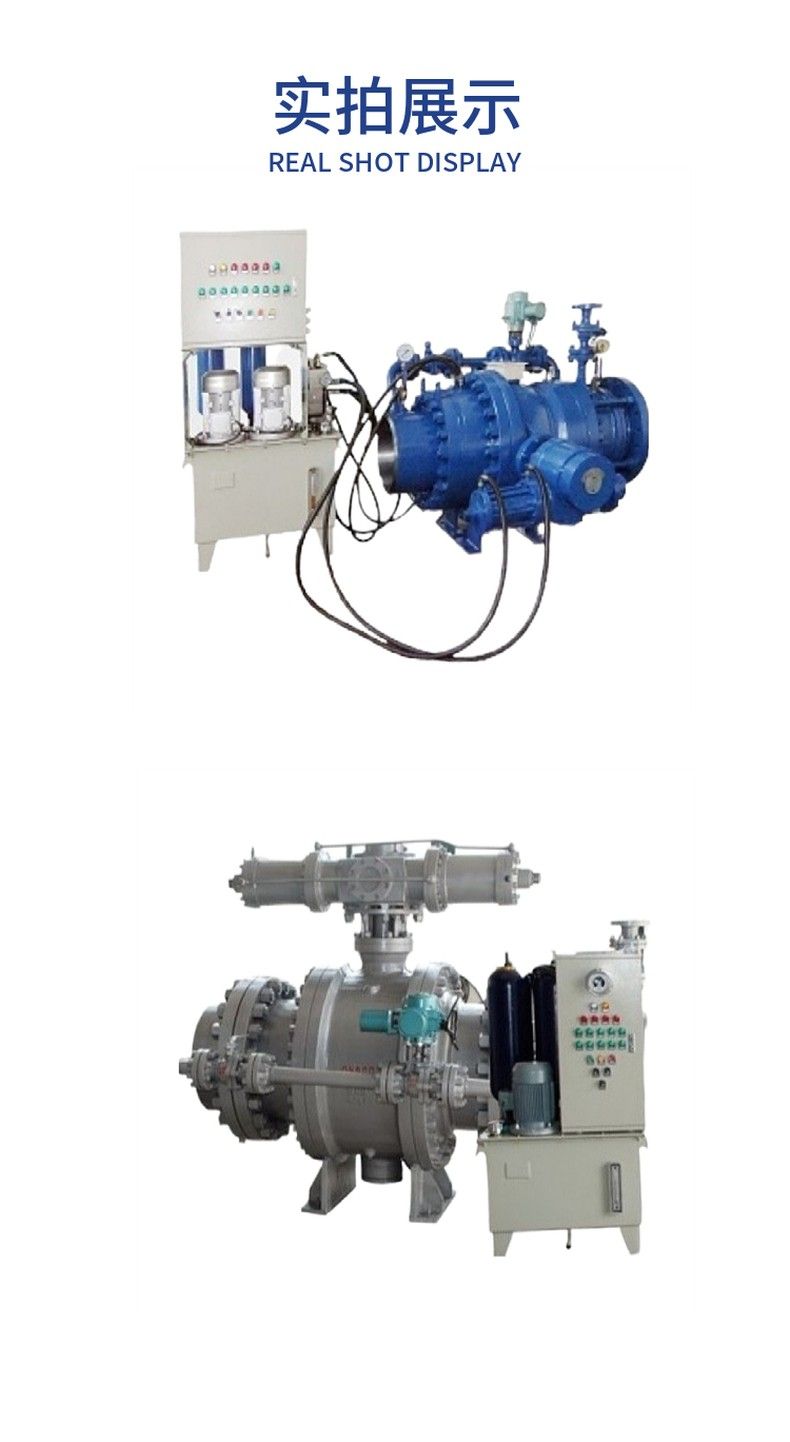

company developed large and medium-sized water turbine inlet valve sets, is specially developed for hydroelectric power station. The valve complete set of equipment is composed of main valve, main expansion joint, upstream connecting pipe, downstream connecting pipe, inlet hole, bypass pipe, bypass pipe expansion joint, exhaust valve, exhaust block valve, sewage valve and sewage pipe. The main valve is driven by hydraulic pressure, and the hydraulic device can be divided into: full hydraulic control type, heavy hammer close type and spring close type. The user can choose by himself when ordering.
Note:
The flow rate of water
through the valve can be divided into four grades: ≤3m/s, ≤5m/s, ≤7m/s and ≤9m/s, which must be indicated when ordering.

Main technical parameters

Executive Standards

CD7Q41X hydraulic turbine valve set configuration connection dimension Unit: mm
